Lynshuo System Integration

Test Automation and Microwave NDT System Integration

We integrate test hardware, motion platforms, host software, probes and fixtures, data processing, and reports into deployable engineering systems, highlighting Lynshuo proprietary software and system delivery capability.

View LS ScanWave LSSW1000 Book system evaluation

Typical system chain

01VNA / instruments

02Precision multi-axis scanner

03Probes and fixtures

04LS ScanWave LSSW1000 software

05Data and reports

Core Systems

Core Systems and Proprietary Software

This entry separates Lynshuo proprietary integration capability from distributed instrument products, making complete system solutions easier to promote.

Precision Multi-Axis Scanning Platform

Automation platform for microwave NDT, S-parameter scanning imaging, and near-field measurement, delivered with VNA, probes, fixtures, and data software.

View LS ScanWave LSSW1000

LS ScanWave LSSW1000

Lynshuo proprietary software for S11 reflection imaging, VNA synchronized acquisition, defect image processing, and research data export.

Open product page

Automated Test and Data Acquisition Systems

Integrated instrument selection, remote control, data caching, report export, and custom API workflows for labs, production lines, and research platforms.

Submit integration request

LS ScanWave LSSW1000 RF NDT software main interface — LS ScanWave LSSW1000 software interface: real-time S11 amplitude/phase traces and scan task data.

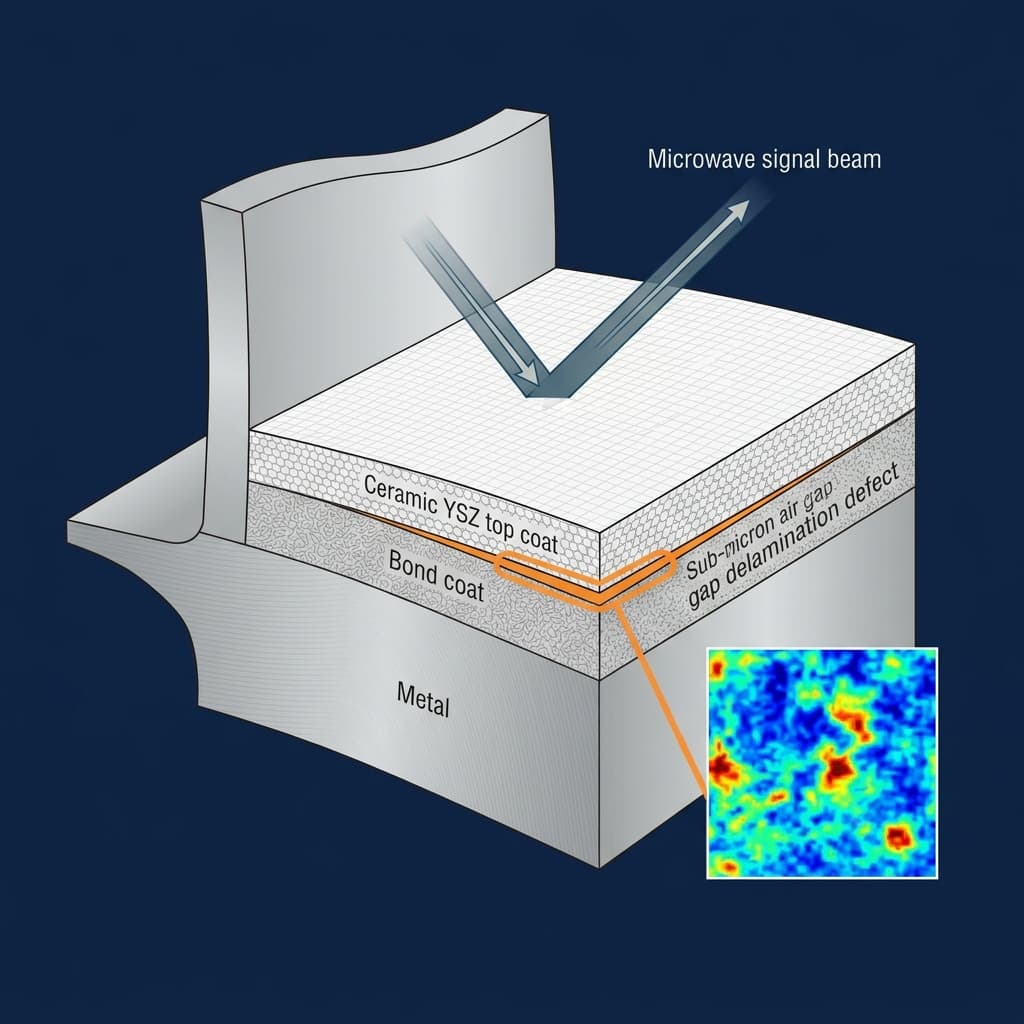

Microwave reflection scanning imaging diagram for thermal barrier coatings — Microwave reflection imaging for coatings, interfaces, and dielectric layer response.

Capabilities

Typical Delivery Capabilities

Instrument selection and integration

Build complete test chains around oscilloscopes, VNAs, spectrum analyzers, power supplies, electronic loads, and related equipment.

Motion control and scanning platform

Integrate multi-axis motion, scan path planning, trigger synchronization, and safety limits around sample size and test cycle.

Host software development

Deliver acquisition control, real-time traces, task management, data caching, algorithm invocation, and report export modules.

Probes, fixtures, and tooling

Design positioning fixtures, probe holders, near-field scanning tooling, and repeatable alignment mechanisms for sample-specific workflows.

Algorithms and data interfaces

Connect CSV, .MAT, and other engineering data workflows while preserving room for secondary development.

Delivery and training

Provide installation, commissioning, operation training, workflow standardization, sample evaluation, and upgrade support.

Applications

Promotable Application Areas

The system integration page captures system, platform, and solution search intent, while the LS ScanWave LSSW1000 product page handles software detail, estimation, and conversion.

Thermal barrier coatingsRadar absorbing coatingsComposite delaminationPCB/package inspectionAdhesive bond debondingResearch microwave scanning

LS ScanWave LSSW1000 2D reflection imaging and defect segmentation interface

Contact

Submit a System Integration Requirement

Describe existing instruments, sample type, test workflow, data interfaces, and delivery schedule. A Lynshuo engineer will evaluate the system architecture and implementation path.
