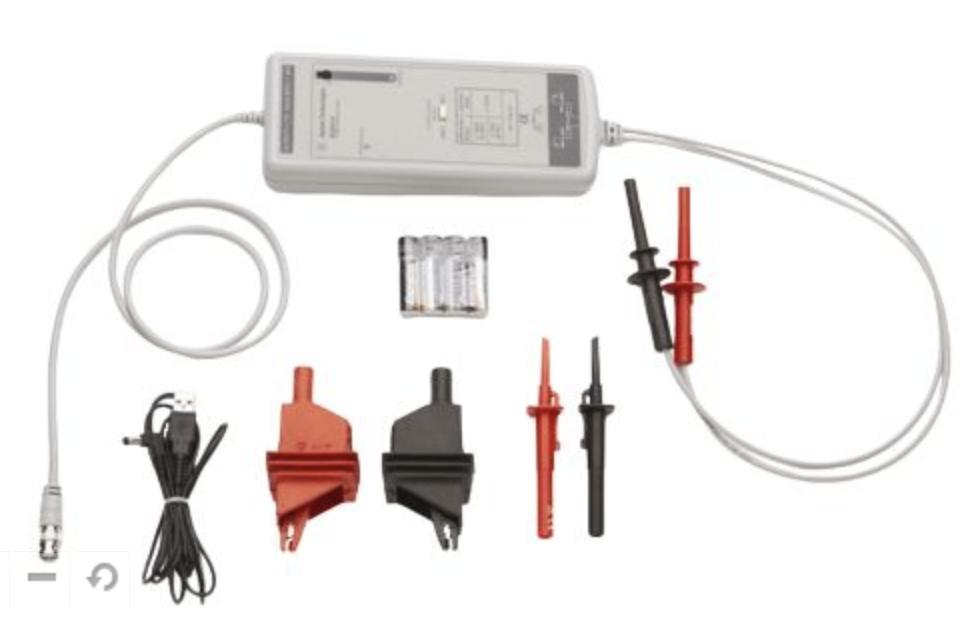

N2891A High Voltage Differential Probe, 70 MHz

Product Overview

Main features:

70 MHz bandwidth

User selectable setting of 100:1 or 1000:1 attenuation ratio

Measures differential and common-mode voltages up to ±7000 V in 1000:1 mode

Powered by built-in 4 AA batteries or can be powered by the oscilloscope/computer’s USB host port

Included accessories:

Two safety hooks front

Two high voltage alligator clips

Compatible oscilloscopes:

Compatible with any oscilloscope with 1 MΩ BNC input

The oscilloscope uses the N2891A 70 MHz high voltage differential probe to make safe and accurate floating measurements. With the N2891A differential probe, traditionally grounded Keysight oscilloscopes can also be used to measure floating signals up to ±7000 V differential and common-mode voltages.

This probe is compatible with oscilloscopes with 1 MΩ BNC inputs. The probe is powered by the included 4 AA batteries or can be powered from the oscilloscope or computer's USB host port via the included USB power cord.

For engineers designing and debugging the latest interface standards, the N2891A High Voltage Differential Probe, 70 MHz offers the highest accuracy and signal integrity in the industry.
