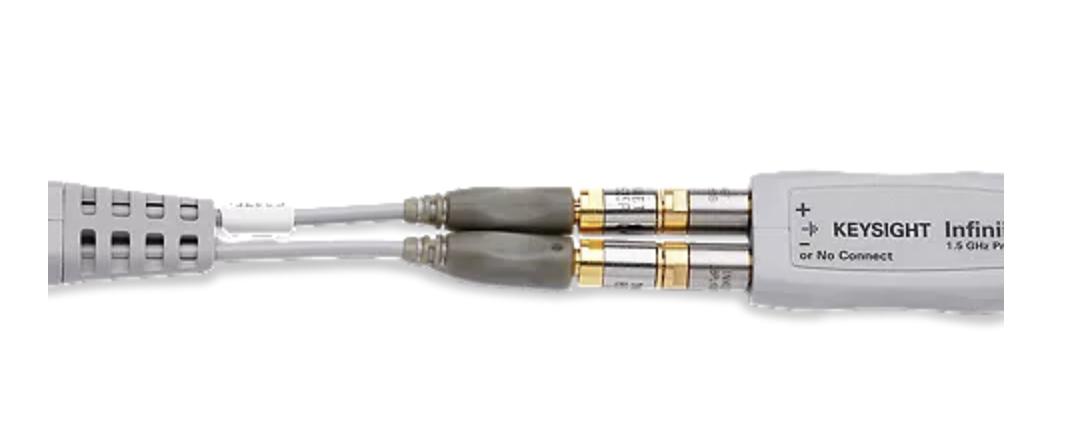

N2880A InfiniiMax Inline Attenuator Kit
Professional Grade Oscilloscope for Advanced Debugging
Recommended Solution Packages
Probe bundles tailored to measurement tasks.
High Voltage Bundle
Safe high-voltage probing workflow.
- High voltage probe (N2880A)
- Safety leads
- Ground spring kit
- Storage case
* Includes compatibility check by our engineers.
Detailed Specifications
Technical Reference for N2880A
Product Overview
Features
Kit contains
A pair of 6 dB attenuators
A pair of 12 dB attenuators
A pair of 20 dB attenuators
Keysight InfiniiMax probes have a dynamic range of 5 Vpp for the 113xA series and 3.3 Vpp for the 1168A/69A. If the application requires measuring larger signals with faster edge speeds, the N2880A in-line coaxial attenuator kit can increase the dynamic range of the probe system by 50 Vpp and increase the offset range to +/-30V without affecting the bandwidth or rise time characteristics of the probe system. The N2880A offers a pair of 6 dB, 12 dB, and 20 dB attenuators in one kit. Probe amplifier and probe not included.
For engineers designing and debugging the latest interface standards, the N2880A InfiniiMax Inline Attenuator Kit offers the highest accuracy and signal integrity in the industry.
