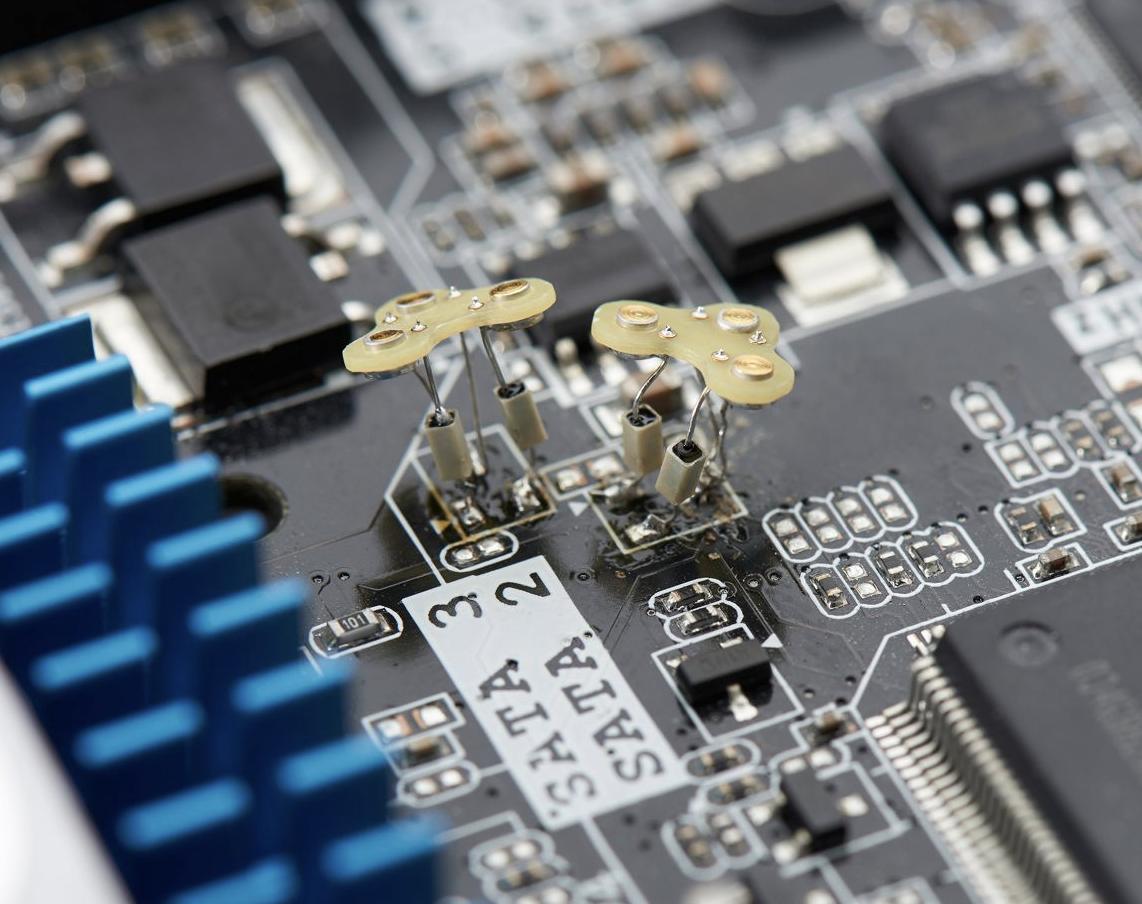

N2849A InfiniiMax III QuickTip Probe

Product Overview

Bandwidth when using QuickTip probe

Up to 16 GHz using InfiniiMax III amplifier

Up to 13 GHz using InfiniiMax III+ amplifier

Up to 12 GHz using InfiniiMax II amplifier (1169B)

InfiniiMode probes feature InfiniiMax III+ amplifiers for differential probing using InfiniiMax I/II/III amplifiers

Compatible with N2848A for InfiniiMax II/III+ amplifiers, N2851A for InfiniiMax I/II amplifiers

Set of 4 probes

The N2848A/49A QuickTip offers Keysight's first magnetically connected probe and tips for fast, secure connections and greatly improved ease of use. The N2848A QuickTip probe quickly connects to the N2849A probe through magnetic adsorption, allowing both ends of the differential signal to be grounded. The device under test allows the installation of multiple N2849A probes, allowing for fast, reliable measurements at multiple probing points. QuickTip can be used with InfiniiMax III+ probe amplifiers, supporting InfiniiMode probing, or with InfiniiMax I/II/III probe amplifiers, supporting differential probing.

For engineers designing and debugging the latest interface standards, the N2849A InfiniiMax III QuickTip Probe offers the highest accuracy and signal integrity in the industry.
