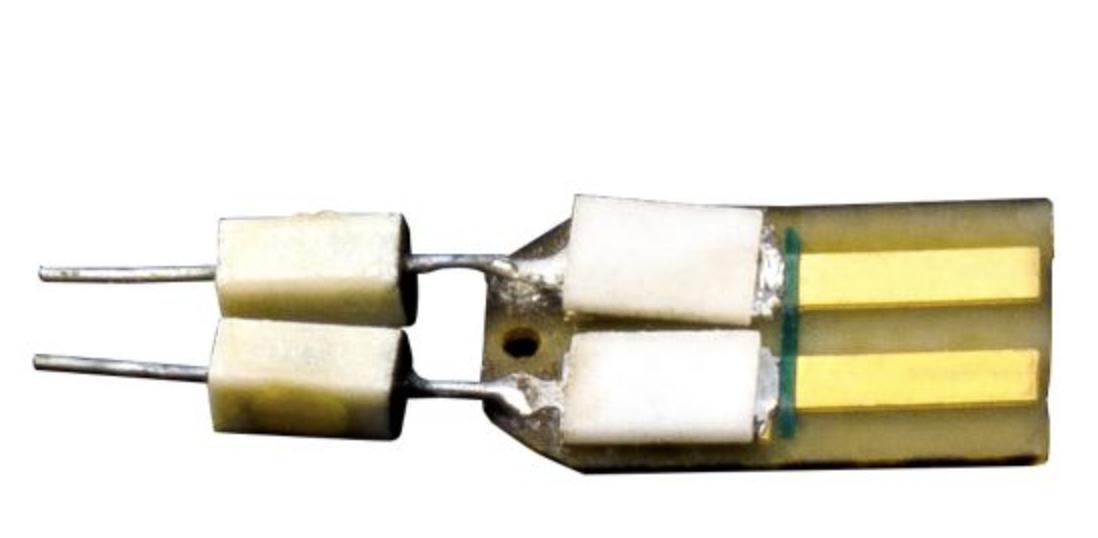

N2838A InfiniiMax III PCB ZIF Probe, 25 GHz

Product Overview

Features

25 GHz bandwidth (using InfiniiMax III N2803A amplifier and N5439A ZIF probe)

Cdiff = 95 fF，Cse = 130 fF

100 kΩ input Rdiff (DC), 1 kΩ input Rdiff (> 10 kHz)

6:1 attenuation ratio, nominal sensitivity

5 mil – 250 mil (or 0.127 mm – 6.35 mm) variable pitch

The N2838A InfiniiMax III PCB ZIF Probe contains a set of 5 ZIF probes and comes with plastic prongs to assist in soldering the probes to the device under test. This probe uses a printed circuit board substrate, making it a very robust and easy-to-use probing solution.

Compatible with InfiniiMax III probe amplifier and N5439A ZIF probe.

The 130 Ω axial resistor on top of the N2838A ZIF probe can be replaced at any time if it becomes worn or damaged.

N2836-68701 is a replacement axial resistor kit for the N2836A and N2838A. Each resistor kit contains 10 resistors.

For engineers designing and debugging the latest interface standards, the N2838A InfiniiMax III PCB ZIF Probe, 25 GHz offers the highest accuracy and signal integrity in the industry.
