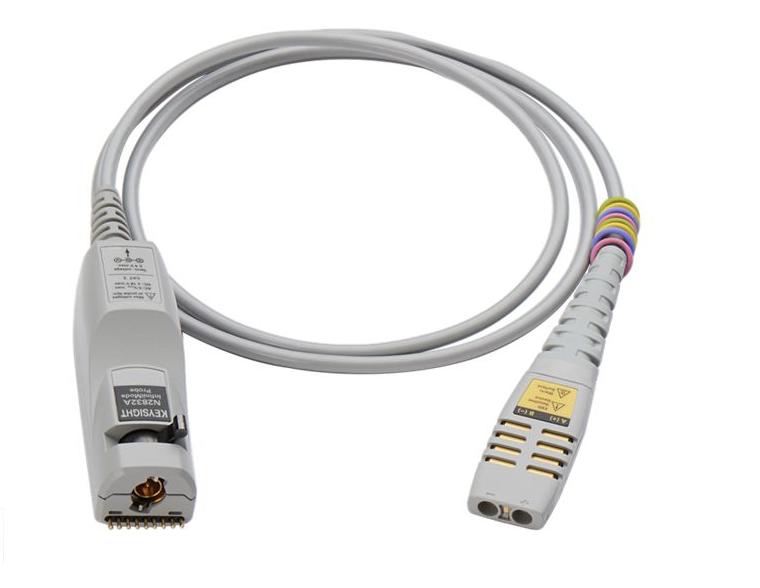

N2832A InfiniiMax III+ Series Probe Amplifier, 13 GHz

Product Overview

Features

bandwidth

13 GHz（-3 dB）

Tr = 33.4 ps（10-90%）

input range

DC attenuation ratio: 10:1 or 5:1

Input voltage range: 2.5 Vpp or ±1.25 V (5:1 attenuation ratio); 5 Vpp or ±2.5 V (10:1 attenuation ratio)

Input common-mode range: ±7 VDC (100 Hz), ±1.25 V (>100 Hz) (5:1 attenuation ratio); ±2.5 V (>100 Hz) (10:1 attenuation ratio)

Offset range: ±16 V (when probing single-ended signals)

Input impedance

DC input resistance: R diff = 100 kΩ ± 2%, R se = 50 kΩ ± 2%

Input resistance above 10 kHz: R diff = 1 kΩ, R se = 500 Ω

Input capacitance: C diff = 32 fF, C se = 44 fF (using ZIF probe)

connectivity

N2848A InfiniiMax III QuickTip probe and N5445A InfiniiMax III browser probe

N5439A InfiniiMax III ZIF probe

N5444A InfiniiMax III 2.92 mm/3.5 mm/SMA probe

N5441A InfiniiMax III solder-in probe

The N2832A Series InfiniiMax III+ probing system is a new generation of InfiniiMax probing systems that greatly expands probe measurement capabilities and ease of use to comprehensively measure differential signals. InfiniiMode technology built into the probing system allows users to switch between differential, single-ended and common-mode probing modes without changing probe connections.

The InfiniiMode technology of the N2832A series probes provides the following operating modes:

A – B (differential)

A – Ground (signal single-ended A)

B – Ground (signal single-ended B)

(A + B)/2 – Ground (common mode)

InfiniiMax III+ works with all InfiniiMax III probes and supports the full bandwidth of InfiniiMax III+.

For engineers designing and debugging the latest interface standards, the N2832A InfiniiMax III+ Series Probe Amplifier, 13 GHz offers the highest accuracy and signal integrity in the industry.
