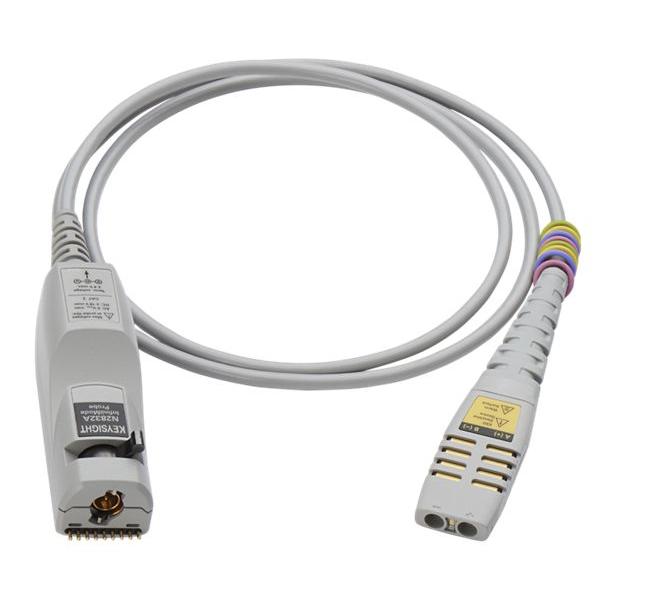

N2830A InfiniiMax III+ Series Probe Amplifier, 4 GHz

Product Overview

Features

bandwidth

4 GHz（-3 dB）

Tr = 108.5 ps（10-90%）

input range

DC attenuation ratio: 10:1 or 5:1

Input voltage range: 2.5 Vpp or ±1.25 V (5:1 attenuation ratio); 5 Vpp or ±2.5 V (10:1 attenuation ratio)

Input common-mode range: ±7 VDC (100 Hz), ±1.25 V (>100 Hz) (5:1 attenuation ratio); ±2.5 V (>100 Hz) (10:1 attenuation ratio)

Offset range: ±16 V (when probing single-ended signals)

Input impedance

DC input resistance: R diff = 100 kΩ ± 2%, R se = 50 kΩ ± 2%

Input resistance above 10 kHz: R diff = 1 kΩ, R se = 500 Ω

Input capacitance: C diff = 32 fF, C se = 44 fF (using ZIF probe)

connectivity

N2848A InfiniiMax III QuickTip probe and N5445A InfiniiMax III browser probe

N5439A InfiniiMax III ZIF probe

N5444A InfiniiMax III 2.92 mm/3.5 mm/SMA probe

N5441A InfiniiMax III solder-in probe

The N2830A Series InfiniiMax III+ probing system is a new generation of InfiniiMax probing systems that greatly expands probe measurement capabilities and ease-of-use to comprehensively measure differential signals. InfiniiMode technology built into the probing system allows users to switch between differential, single-ended and common-mode probing modes without changing probe connections.

The InfiniiMode technology of the N2830A Series probes provides the following operating modes:

A – B (differential)

A – Ground (signal single-ended A)

B – Ground (signal single-ended B)

(A + B)/2 – Ground (common mode)

InfiniiMax III+ works with all InfiniiMax III probes and supports the full bandwidth of InfiniiMax III+.

For engineers designing and debugging the latest interface standards, the N2830A InfiniiMax III+ Series Probe Amplifier, 4 GHz offers the highest accuracy and signal integrity in the industry.
