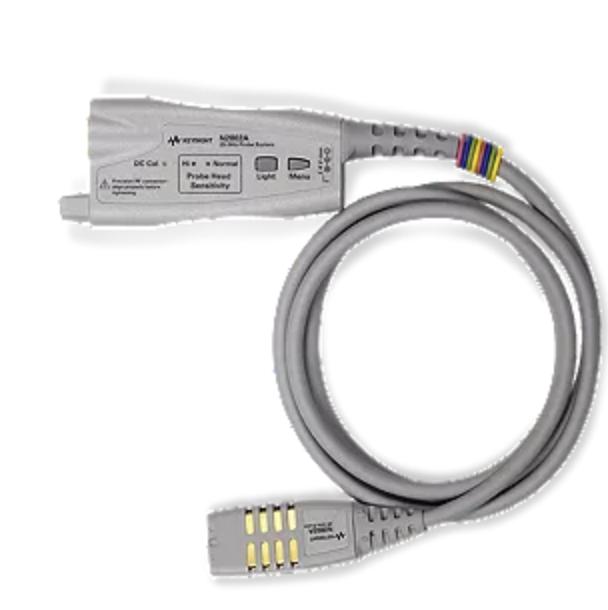

N2801A InfiniiMax III Series probe amplifier, 20 GHz

Product Overview

Features

bandwidth:

20 GHz

Tr = 27.1 ps

scope:

DC attenuation ratio: 6:1 (3:1 when using 200 Ω ZIF probe)

Input voltage range: 1.6 Vpp (0.8 Vpp using 200 Ω ZIF probe)

Input common-mode range: ±12 V (dc to 250 Hz), ±2.5 V (>250 Hz); with 200 Ω ZIF probe: ±6 V (dc to 250 Hz), ±1.25 V (>250 Hz)

Offset range: ±16 V (when probing single-ended signals)

Input impedance:

DC input resistance: R diff = 100 kΩ ± 2%, R se = 50 kΩ ± 2%

Input resistance above 10 kHz: R diff = 1 kΩ, R se = 500 Ω

Input capacitance: C diff = 32 fF, C se = 48 fF (using ZIF probe)

Recommended probes:

N5445A 30 GHz spot probe

N5444A 30 GHz 2.92/3.4 mm SMA probe

N5439A 28 GHz ZIF probe

MX0109A 26 GHz solder-in probe

Oscilloscope connectivity:

UXR 3.5 mm oscilloscope

UXR 1 and 1.85 mm oscilloscopes with N2852A adapter

90000X, Q, V, Z series oscilloscopes

The InfiniiMax III detection system provides greater bandwidth with minimal loading effects, enabling higher levels of signal fidelity and accuracy. InfiniiMax III probe amplifiers are available in four different models from 16 GHz to 30 GHz, so there is a probing solution that best meets your performance and budget requirements. The InfiniiMax III detection system uses a proprietary 200 GHz fT InP (indium phosphide) IC process with backside ground vias and novel thick film technology to meet higher performance needs and is well received by the market.

Main features

Full 20 GHz probe.

Ultra-low probe and oscilloscope system noise.

Greater bandwidth and ultra-low loading effects provide greater fidelity and accuracy.

The probe amplifier is loaded with measured s-parameters, allowing for more accurate response correction.

Probe bandwidth can be upgraded.

Contains a variety of probes suitable for different purposes and very easy to use.

For engineers designing and debugging the latest interface standards, the N2801A InfiniiMax III Series probe amplifier, 20 GHz offers the highest accuracy and signal integrity in the industry.
