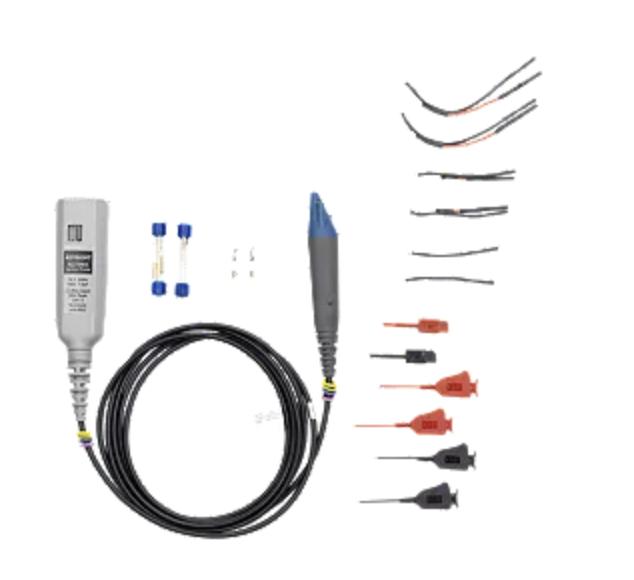

N2797A Extreme Temperature Active Probe, 1.5 GHz

Product Overview

Wide operating temperature range: –40 °C to +85°C for extreme temperature environmental chamber testing

1.5 GHz wideband (-3 dB)

High resistance (1 MΩ) and low capacitance (1 pF) inputs enable low loading

Wide input dynamic range (±8 V) and offset range (±12 V)

Built-in headlight provides excellent visibility during manual spot testing

Includes various probe accessories

Direct connection to AutoProbe interface (no power supply required)

Testing devices under extreme temperature conditions is now commonplace. The N2797A single-ended active probe is the industry's first low-cost, high input impedance active probe with ruggedized tips for environmental chamber testing of ICs and devices. It provides the capability for signal detection in harsh temperature environments from –40°C to +85°C. The probe offers 1.5 GHz bandwidth and a 2-meter cable.

The N2797A is equipped with a white LED headlight that illuminates the circuit under test, providing good visibility during manual spot testing. The probe is powered directly by the InfiniiVision and Infiniium AutoProbe interfaces, eliminating the need for an additional power supply. The probe also comes standard with several accessories for easy connection to the circuit under test. Replacement probe accessories are available by ordering the N2798A accessory kit.

For engineers designing and debugging the latest interface standards, the N2797A Extreme Temperature Active Probe, 1.5 GHz offers the highest accuracy and signal integrity in the industry.
