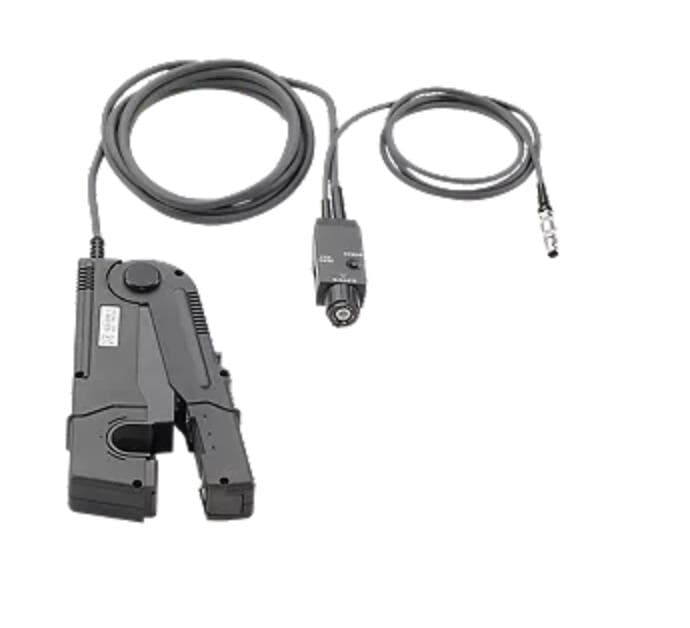

N2781B AC/DC Current Probe, 10 MHz, 150 Arms

Product Overview

Features

The N2781B current probe provides an accurate and reliable solution for measuring AC/DC current. This probe uses hybrid technology including a Hall effect sensor and an AC current transformer to perform accurate measurements of continuous DC or AC current up to 150 Arms.

This current probe also features flat frequency response, low noise, and low insertion loss, making it ideal for measuring steady-state or transient current in devices such as motors, switching power supplies, inverters, controllers, disk drives, LCD displays, electronic ballasts, and current amplifiers driving inductive loads.

For use with Keysight oscilloscopes with high-impedance BNC inputs: 1000, 2000 X, 3000 X, 4000

Achieves DC to 10 MHz flat bandwidth with 150 Arms maximum current

Excellent accuracy (1%) and high signal-to-noise ratio

Overload protection function prevents probe damage due to excessive input current

Connect directly to the oscilloscope’s high-impedance BNC input

Use the Demagnetize button to remove residual magnetism built up in the core

Using an external power supply N2779A can connect up to three N278xB on one power supply

For engineers designing and debugging the latest interface standards, the N2781B AC/DC Current Probe, 10 MHz, 150 Arms offers the highest accuracy and signal integrity in the industry.
