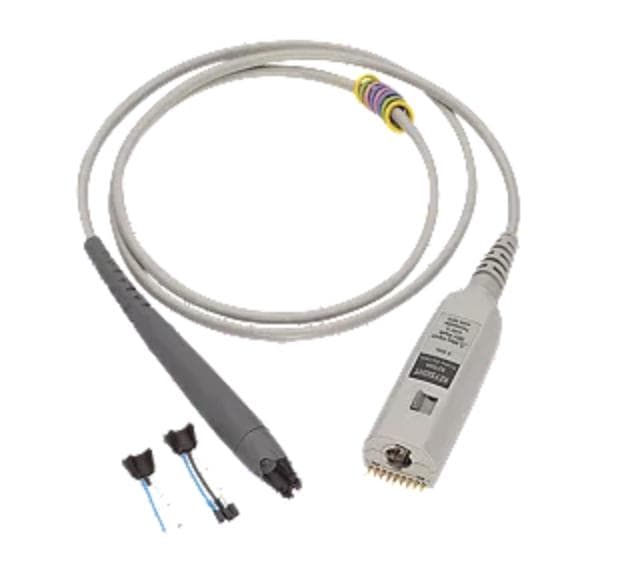

N2751A InfiniiMode Active Differential Probe, 3.5 GHz

Product Overview

Highlights

The N2751A InfiniiMode differential probe is a new generation of low-cost differential active probes compatible with the AutoProbe interface of Keysight InfiniiVision and Infiniium oscilloscopes. It features a new operating mode that conveniently measures differential, single-ended and common-mode signals with a single probe, eliminating the need to reconnect the probe to change connections. InfiniiMode for the N2751A probe provides the following operating modes.

A – B (differential)

A – Ground (single-ended A)

B – Ground (single-ended B)

(A+B)/2 – Ground (common mode)

Shortcut oscilloscope control

Shortcut oscilloscope controls built into the probe allow you to turn the probe's headlight on or off or control some commonly used oscilloscope functions such as run/stop, auto-zoom, quick print, quick save, and more, just by pressing a button on the probe.

Measurement versatility

These probes integrate many of the functions and features required for today's common high-speed differential probing, particularly in digital system design, component design/characterization, and differential serial bus measurements. The N2751A Series differential probes are available in 2:1 and 10:1 dual attenuation settings for a wide range of applications. The dual attenuation range is automatically configured based on the size of the input signal. These differential probes feature an input resistance of 200 kΩ (differential) or 100 kΩ (each input individually grounded) and an extremely low input capacitance of 700 fF, minimizing circuit loading. With excellent signal fidelity, this probe is suitable for most digital design and debugging applications. Furthermore, with their wide dynamic range (10 Vpp at 10:1 attenuation) and offset range (±15 V), these probes can also be used for a wide range of analog signal measurements.

Technical indicators:

Bandwidth: 3.5 GHz

Attenuation ratio: 2:1 or 10:1 (switchable)

scope:

Dynamic range: ±5 V or 10 Vpp at 10:1 attenuation, ±1 V or 2 Vpp at 2:1 attenuation

DC offset range: ±15 V

Maximum input voltage: 30 V DC + DC peak

Input impedance:

Differential input resistance: 200 kΩ

Single-ended input resistance: 100 kΩ

Common mode input resistance: 50 kΩ

Input capacitance: 700 fF (when using a spot probe head)

Connectivity:

Comes standard with solder-in, socket and spot probes (two probes per probe)

Replacement parts: N2776A Differential Probes (3), N2777A InfiniiMode Solder-in Probes (3), and N2778A InfiniiMode Socket Probes (3)

Order the N4822A receptacle probe for use with USB/Ethernet application fixtures (not included in the standard probe kit)

For engineers designing and debugging the latest interface standards, the N2751A InfiniiMode Active Differential Probe, 3.5 GHz offers the highest accuracy and signal integrity in the industry.
