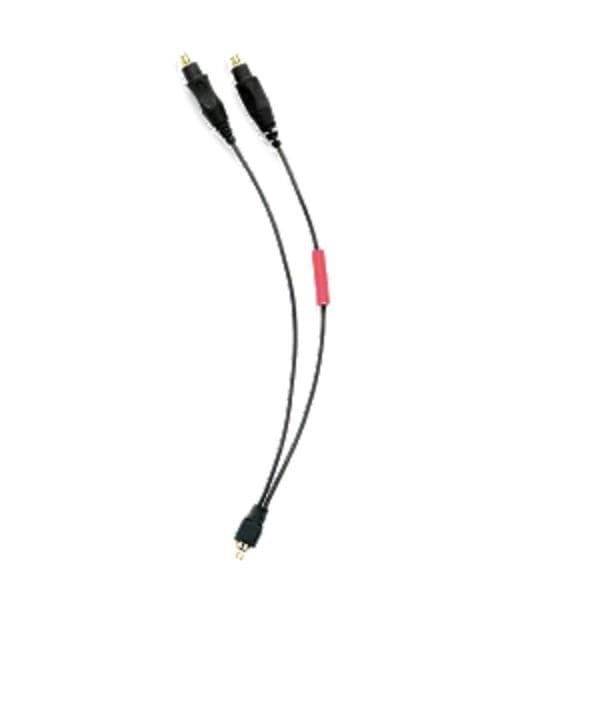

MX0109A InfiniiMax III extreme temperature solder-in probe, 26 GHz

Product Overview

Features

The Keysight MX0109A InfiniiMax III extreme temperature solder-in probe is a semi-permanent solder-in connection that provides system bandwidth up to 26 GHz. For extended temperature testing, the MX0109A is capable of supporting extreme operating temperatures from -55 °C to +150 °C per the JEDEC JESD22-A104 Rev. E standard, making it ideal for testing electronic circuits and devices in environmental chambers.

It is compatible with InfiniiMax III and III+ probe amplifiers.

The 130 Ω axial resistor on the tip of the MX0109A ZIF probe is replaceable if it becomes worn or damaged.

The N2836-68701 is a replacement axial resistor kit for the MX0109A, N2836A, and N2838A. Each resistor kit contains 10 resistors.

Operating temperature characteristics:

Minimum 1,000 hours dwell time at -55 °C

Minimum 1,000 hours dwell time at +150 °C

Supports a minimum of 750 cycles from -55 °C to 150 °C as specified in the JEDEC JESD22-A104 Rev. E standard

Extend the cable length in your environmental chamber with the N5450B Extreme Temperature Extension Cable.

Main features

26 GHz bandwidth (using InfiniiMax III N2803A amplifier)

Cdiff = 108 fF，Cse = 140 fF

100 kΩ input Rdiff (DC), 1 kΩ input Rdiff (> 10 kHz)

6:1 attenuation ratio, nominal sensitivity

5 mil – 250 mil (or 0.127 mm – 6.35 mm) variable pitch

Note: MX0109A is a replacement for N2836A. Both probes are compatible with each other in form, size and function.

For engineers designing and debugging the latest interface standards, the MX0109A InfiniiMax III extreme temperature solder-in probe, 26 GHz offers the highest accuracy and signal integrity in the industry.
