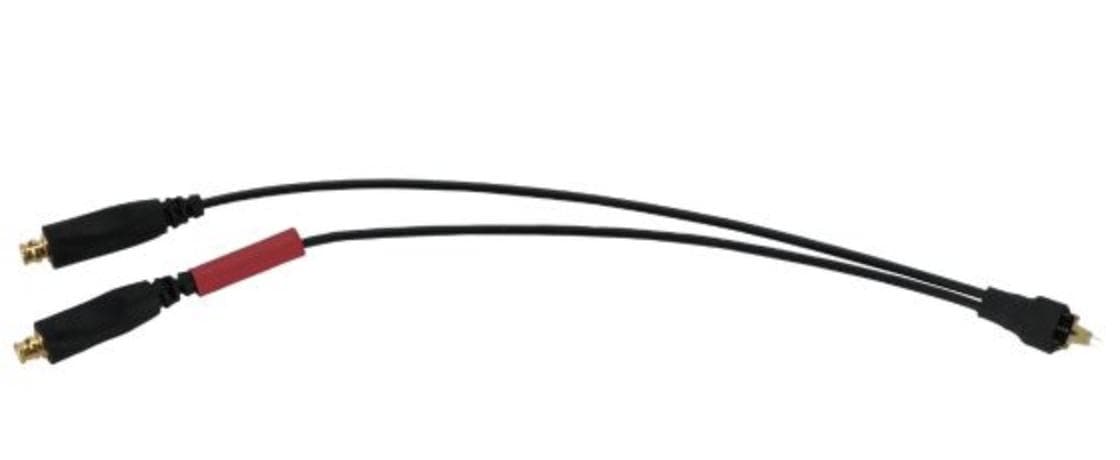

MX0106A InfiniiMax Differential Solder-in Probe, 23 GHz

Product Overview

Features

Provides 23 GHz bandwidth when used with InfiniiMax MX0023A RC probe amplifier

170 fF differential input capacitance for minimal probe loading effects

Reliable semi-permanent connection

6.4-inch coaxial cable that reaches into tight spaces (such as DIMM sockets)

Variable conductor spacing: 0.2 - 3.3 mm (8 to 130 mils)

Wide operating temperature range: -55 °C to +150 °C

The MX0106A is a solder-in probe that can be connected to the target by soldering, making the connection reliable without relying on hand-holding. This probe configuration has a 23 GHz bandwidth and minimal capacitive loading effects, allowing measurements of both single-ended and differential signals simultaneously. It uses strong 7 mil diameter (4 mil optional) nickel wire that can be attached to tiny targets with very narrow spacing and is replaceable. This solder-in probe can be used over a wide temperature range of -55 °C to +150 °C.

For engineers designing and debugging the latest interface standards, the MX0106A InfiniiMax Differential Solder-in Probe, 23 GHz offers the highest accuracy and signal integrity in the industry.
