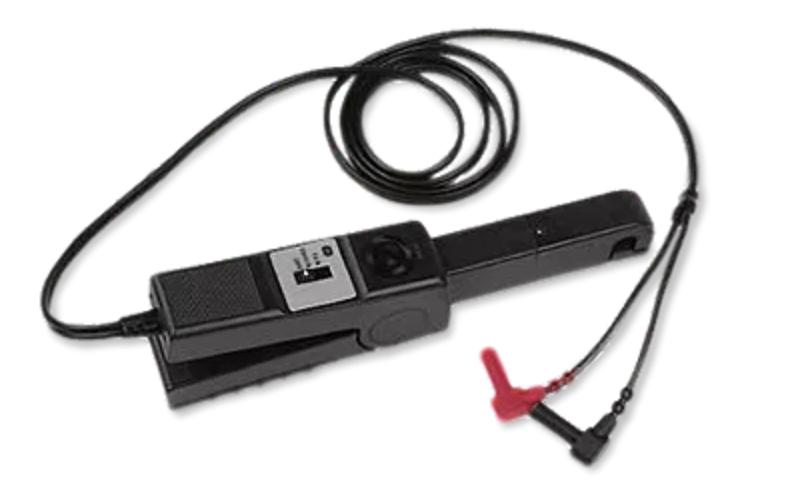

34134A DC-coupled current probe

Product Overview

Features

Terminal load: right angle shielded banana plug

Frequency range: DC to 8 kHz

Current range: 10 mA to 80 A DC, 10 mA to 60 A AC

Accuracy: 2% of reading +5 mA (1 V/A range)

Output signal: 1 V/A and 10 mA

Length: 1.5 meters

Minimum input resistance of digital multimeter: 100 kΩ

Rated voltage: 600 V CAT III

The Keysight 34134A is a versatile clamp-on probe that can measure ground current, power supply ripple, or current distribution in a system.

The 34134A is compatible with the 34401A, 34410A, 34411A, and L4411A digital multimeters. For compatibility information with other digital multimeter models, see the compatibility notes in the 34134A technical data sheet.

For engineers designing and debugging the latest interface standards, the 34134A DC-coupled current probe offers the highest accuracy and signal integrity in the industry.
