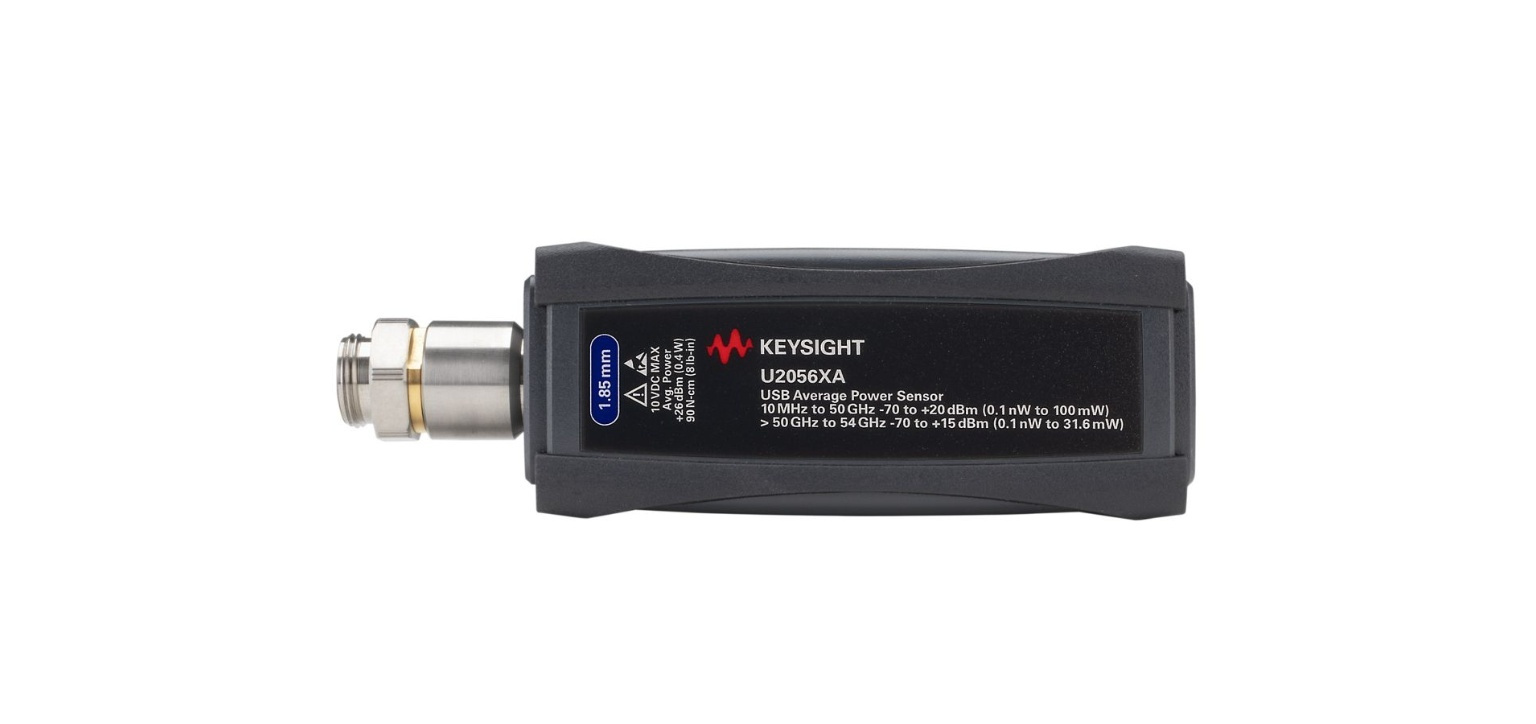

U2056XA 10 MHz to 54 GHz USB 宽动态范围平均Power Sensor

Product Overview

Frequency range of 10 MHz – 67 GHz

USB connectivity with a wide dynamic range of -70 to +20 dBm (frequency 10 MHz to 50 GHz) / -70 to +15 dBm (frequency > 50 GHz to 54 GHz) / -70 to +10 dBm (frequency > 54 GHz to 67 GHz) for small signal measurements

5 MHz video bandwidth and single shot real-time capture at 20 Msample/sec per second

Variable Sampling Rate 1M samples/sec and Long Memory 1M samples data storage

Fast real-time measurement of 50,000 readings/sec

Real-time measurement with zero dead time to ensure every single continuous pulse is measured

Average mode time-selectivity function allows full dynamic range for average and time selectivity average power measurements

Internal zero and automatic calibration saves time and reduces measurement uncertainty

A BenchVue software license (BV0007B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences

For engineers designing and debugging the latest interface standards, the U2056XA 10 MHz to 54 GHz USB 宽动态范围平均Power Sensor offers the highest accuracy and signal integrity in the industry.
