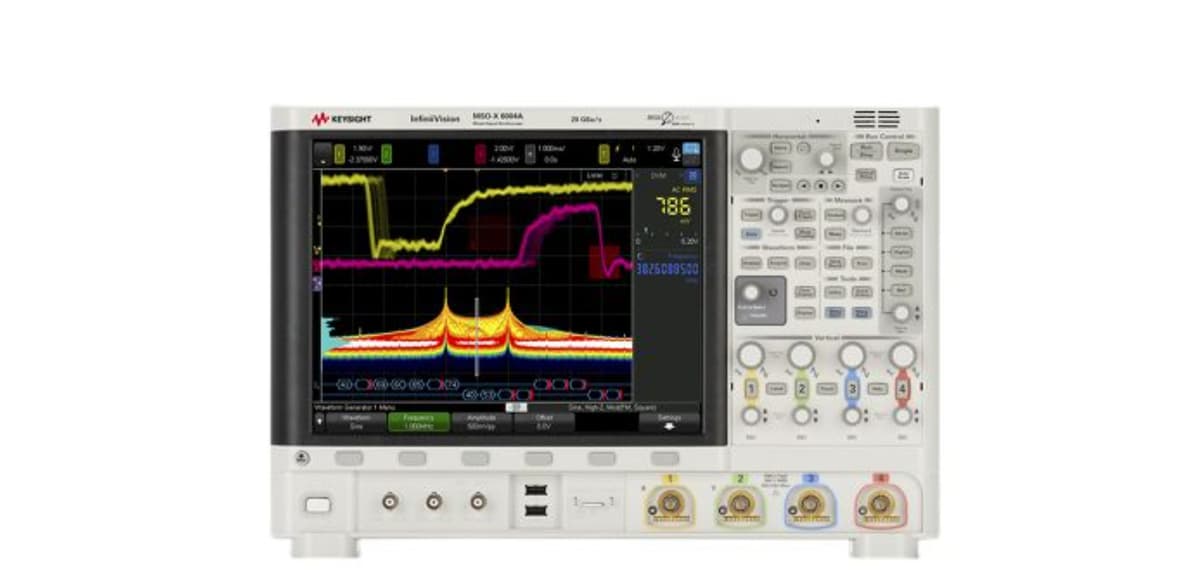

MSOX6004A InfiniiVision 6000 X-Series Oscilloscope: 1 to 6 GHz, 4 Analog + 16 Digital Channels
Professional Grade Oscilloscope for Advanced Debugging
1 GHz - 6 GHz (Upgradable)Bandwidth
4 Analog + 16 DigitalChannels
20 GSa/s (half) / 10 GSa/s (all)Sample Rate
4 MptsMemory
Distributor
Fast Response
Recommended Solution Packages
Scenario-based oscilloscope configurations for validation and debug.
Bench Essentials
Baseline configuration for routine debug and verification.
Best for: R&D and bench validation
Key Parameters
Bandwidth headroomChannel countMemory depth
- Main unit (MSOX6004A)
- Passive probes (x4)
- Standard warranty & certification
- Calibration certificate
* Includes compatibility check by our engineers.
Detailed Specifications
Technical Reference for MSOX6004A
| Bandwidth | 1 GHz - 6 GHz (Upgradable) |
| Channels | 4 Analog + 16 Digital |
| Sample Rate | 20 GSa/s (half) / 10 GSa/s (all) |
| Memory | 4 Mpts |
| Memory Depth | 4 Mpts (half) / 2 Mpts (all) |
| Waveform Update Rate | > 450,000 wfms/s |
| Rise Time | ≤ 75 ps (6 GHz model) |
| Time Base Range | 100 ps/div to 50 s/div |
| Display | 12.1-inch Multi-Touch Capacitive |
| Noise Floor | 115 µVrms (1 GHz) to 210 µVrms (6 GHz) |
Product Overview
Keysight InfiniiVision 6000 X-Series: The new standard in portable performance. Mixed Signal Oscilloscope with 16 digital channels.
Key Benefits
Visualization
12.1-inch multi-touch screen with hardware zone touch trigger.
Integration
7-in-1: Oscilloscope, Logic Analyzer (Standard), Protocol Analyzer, WaveGen, DVM, Counter, Frequency Response Analysis.
Voice Control
Multi-language voice control for hands-free operation.
Jitter Analysis
Standard histogram and color grade, optional jitter/real-time eye analysis.
For engineers designing and debugging the latest interface standards, the MSOX6004A InfiniiVision 6000 X-Series Oscilloscope: 1 to 6 GHz, 4 Analog + 16 Digital Channels offers the highest accuracy and signal integrity in the industry.
