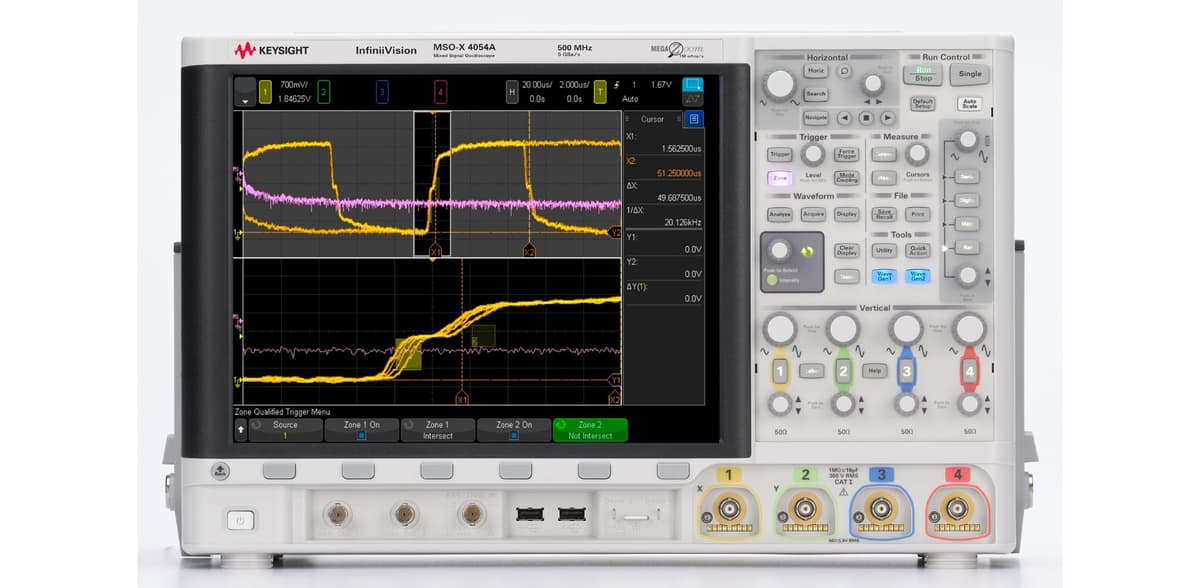

MSOX4054A Mixed Signal Oscilloscope: 500 MHz, 4 Analog Plus 16 Digital Channels
Professional Grade Oscilloscope for Advanced Debugging
500 MHzBandwidth
4 Analog + 16 DigitalChannels
5 GSa/sSample Rate
4 MptsMemory
Distributor
Fast Response
Recommended Solution Packages
Scenario-based oscilloscope configurations for validation and debug.
Bench Essentials
Baseline configuration for routine debug and verification.
Best for: R&D and bench validation
Key Parameters
Bandwidth headroomChannel countMemory depth
- Main unit (MSOX4054A)
- Passive probes (x4)
- Standard warranty & certification
- Calibration certificate
* Includes compatibility check by our engineers.
Detailed Specifications
Technical Reference for MSOX4054A
| Bandwidth | 500 MHz |
| Channels | 4 Analog + 16 Digital |
| Sample Rate | 5 GSa/s |
| Memory | 4 Mpts |
| Rise Time | ≤ 700 ps |
| Memory Depth | 4 Mpts |
| Waveform Update Rate | > 1,000,000 wfms/s |
| Input Impedance | 1 MΩ / 50 Ω |
| Horizontal Range | 2 ns/div to 50 s/div |
| Display | 12.1-inch Capacitive Touch |
Product Overview
The InfiniiVision 4000 X-Series boasts a 12.1-inch capacitive touch display and the industry’s only uncompromised > 1,000,000 waveforms/sec update rate.
Key Benefits
Touch Screen
Large 12.1-inch capacitive touch display for intuitive gesture control.
Fastest Update Rate
> 1,000,000 waveforms/sec update rate revealing infrequent glitches.
Zone Touch Trigger
Simply draw a box on the screen to isolate signal anomalies.
5-in-1 Integration
Oscilloscope, Logic Analyzer, Protocol Analyzer, WaveGen, and DVM.
For engineers designing and debugging the latest interface standards, the MSOX4054A Mixed Signal Oscilloscope: 500 MHz, 4 Analog Plus 16 Digital Channels offers the highest accuracy and signal integrity in the industry.
