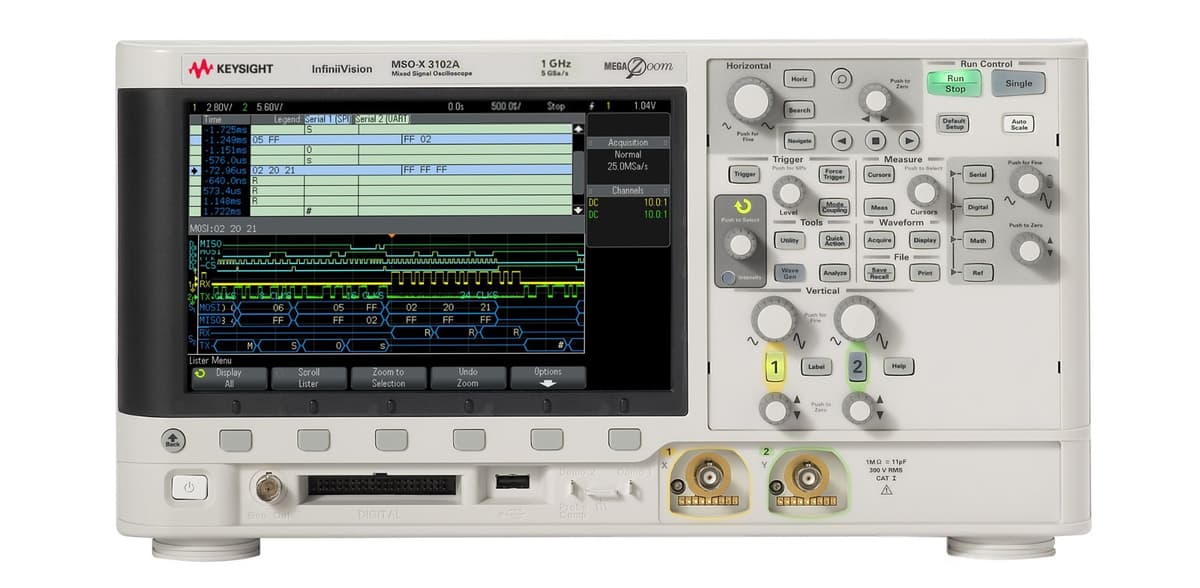

MSOX3102A Mixed Signal Oscilloscope: 1 GHz, 2 Analog Plus 16 Digital Channels

MSOX3102A Mixed Signal Oscilloscope: 1 GHz, 2 Analog Plus 16 Digital Channels

Professional Grade Oscilloscope for Advanced Debugging

1 GHzBandwidth
2 Analog + 16 DigitalChannels
5 GSa/sSample Rate
2 Mpts (std), 4 Mpts (opt)Memory
Distributor
Fast Response

Recommended Solution Packages

Scenario-based oscilloscope configurations for validation and debug.

Bench Essentials

Baseline configuration for routine debug and verification.

Best for: R&D and bench validation
Key Parameters
Bandwidth headroomChannel countMemory depth
  • Main unit (MSOX3102A)
  • Passive probes (x4)
  • Standard warranty & certification
  • Calibration certificate

* Includes compatibility check by our engineers.

Detailed Specifications

Technical Reference for MSOX3102A

Bandwidth1 GHz
Channels2 Analog + 16 Digital
Sample Rate5 GSa/s
Memory2 Mpts (std), 4 Mpts (opt)
Rise Time≤ 450 ps
Memory Depth2 Mpts (std), 4 Mpts (opt)
Waveform Update Rate> 1,000,000 wfms/s
Input ImpedanceSelectable 1 MΩ or 50 Ω
Horizontal Range500 ps/div to 50 s/div
Display8.5-inch WVGA

Product Overview

The InfiniiVision 3000A X-Series redefined oscilloscopes. It sees the most signal detail, does more functions than any other oscilloscope, and gives you maximum investment protection. The 3000A X-Series’ innovation starts with the industry’s only 6-instruments-in-1 integration, delivering more scope for the same budget with breakthrough technology.

Key Benefits

Fastest Update Rate
With Keysight’s MegaZoom IV smart memory technology, the 3000 X-Series updates waveforms up to 1 million times per second, providing the highest probability of capturing random and infrequent events.
MegaZoom IV Smart Memory
Enables the industry's fastest update rate while maintaining high responsiveness even with deep memory records, allowing you to see signal detail that other scopes miss.
6-instruments-in-1 Integration
Integrates digital channels (MSO), serial protocol analyzer, WaveGen, 3-digit digital voltmeter, and an 8-digit hardware counter/totalizer.
Largest Display in its Class
Equipped with a large 8.5-inch WVGA display, it offers the best signal visibility to view analog, digital, and serial signals easily on a single screen.
Fully Upgradable
As the industry’s only fully-upgradable family of oscilloscopes, it allows you to upgrade bandwidth (up to 1 GHz), digital channels, and software applications.

For engineers designing and debugging the latest interface standards, the MSOX3102A Mixed Signal Oscilloscope: 1 GHz, 2 Analog Plus 16 Digital Channels offers the highest accuracy and signal integrity in the industry.
