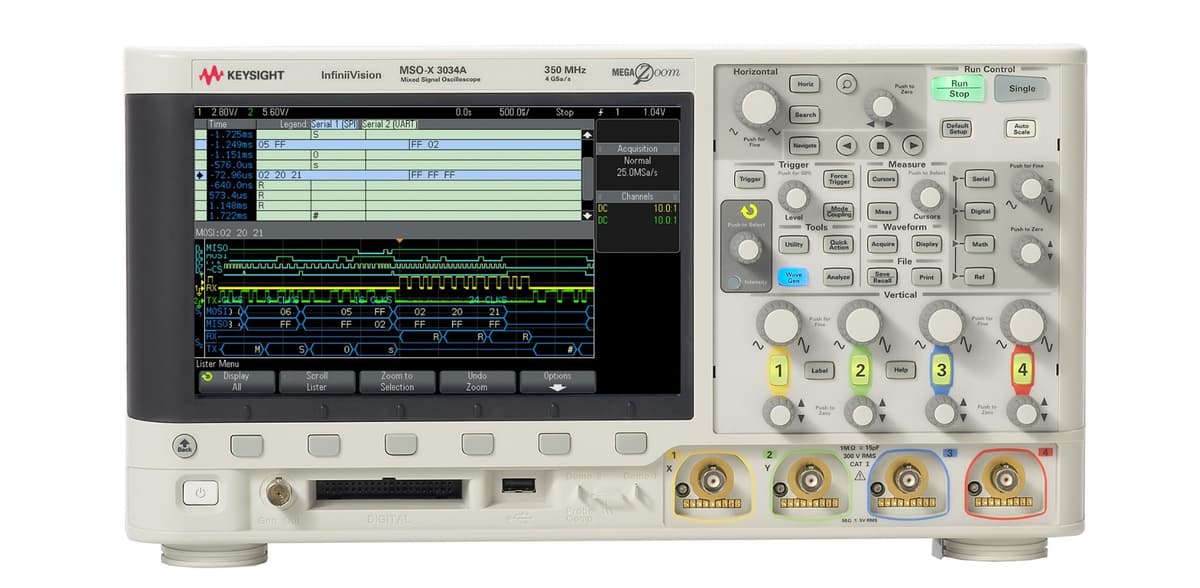

MSOX3034A Mixed Signal Oscilloscope: 350 MHz, 4 Analog Plus 16 Digital Channels

Name: MSOX3034A Mixed Signal Oscilloscope: 350 MHz, 4 Analog Plus 16 Digital Channels
Brand: Keysight
SKU: MSOX3034A

Professional Grade Oscilloscope for Advanced Debugging

350 MHzBandwidth

4 Analog + 16 DigitalChannels

4 GSa/sSample Rate

2 Mpts (std), 4 Mpts (opt)Memory

Distributor

Fast Response

Bench Essentials

Baseline configuration for routine debug and verification.

Best for: R&D and bench validation

Key Parameters

Bandwidth headroomChannel countMemory depth

Main unit (MSOX3034A)
Passive probes (x4)
Standard warranty & certification
Calibration certificate

* Includes compatibility check by our engineers.

Detailed Specifications

Technical Reference for MSOX3034A

OverviewTechnical SpecificationsResources & Drivers

Bandwidth	350 MHz
Channels	4 Analog + 16 Digital
Sample Rate	4 GSa/s
Memory	2 Mpts (std), 4 Mpts (opt)
Rise Time	≤ 1 ns
Memory Depth	2 Mpts (std), 4 Mpts (opt)
Waveform Update Rate	> 1,000,000 wfms/s
Input Impedance	Selectable 1 MΩ or 50 Ω
Horizontal Range	2 ns/div to 50 s/div
Display	8.5-inch WVGA

Product Overview

The InfiniiVision 3000A X-Series redefined oscilloscopes. It sees the most signal detail, does more functions than any other oscilloscope, and gives you maximum investment protection. The 3000A X-Series’ innovation starts with the industry’s only 6-instruments-in-1 integration, delivering more scope for the same budget with breakthrough technology.

Key Benefits

Fastest Update Rate

With Keysight’s MegaZoom IV smart memory technology, the 3000 X-Series updates waveforms up to 1 million times per second, providing the highest probability of capturing random and infrequent events.

MegaZoom IV Smart Memory

Enables the industry's fastest update rate while maintaining high responsiveness even with deep memory records, allowing you to see signal detail that other scopes miss.

6-instruments-in-1 Integration

Integrates digital channels (MSO), serial protocol analyzer, WaveGen, 3-digit digital voltmeter, and an 8-digit hardware counter/totalizer.

Largest Display in its Class

Equipped with a large 8.5-inch WVGA display, it offers the best signal visibility to view analog, digital, and serial signals easily on a single screen.

Fully Upgradable

As the industry’s only fully-upgradable family of oscilloscopes, it allows you to upgrade bandwidth (up to 1 GHz), digital channels, and software applications.

For engineers designing and debugging the latest interface standards, the MSOX3034A Mixed Signal Oscilloscope: 350 MHz, 4 Analog Plus 16 Digital Channels offers the highest accuracy and signal integrity in the industry.
