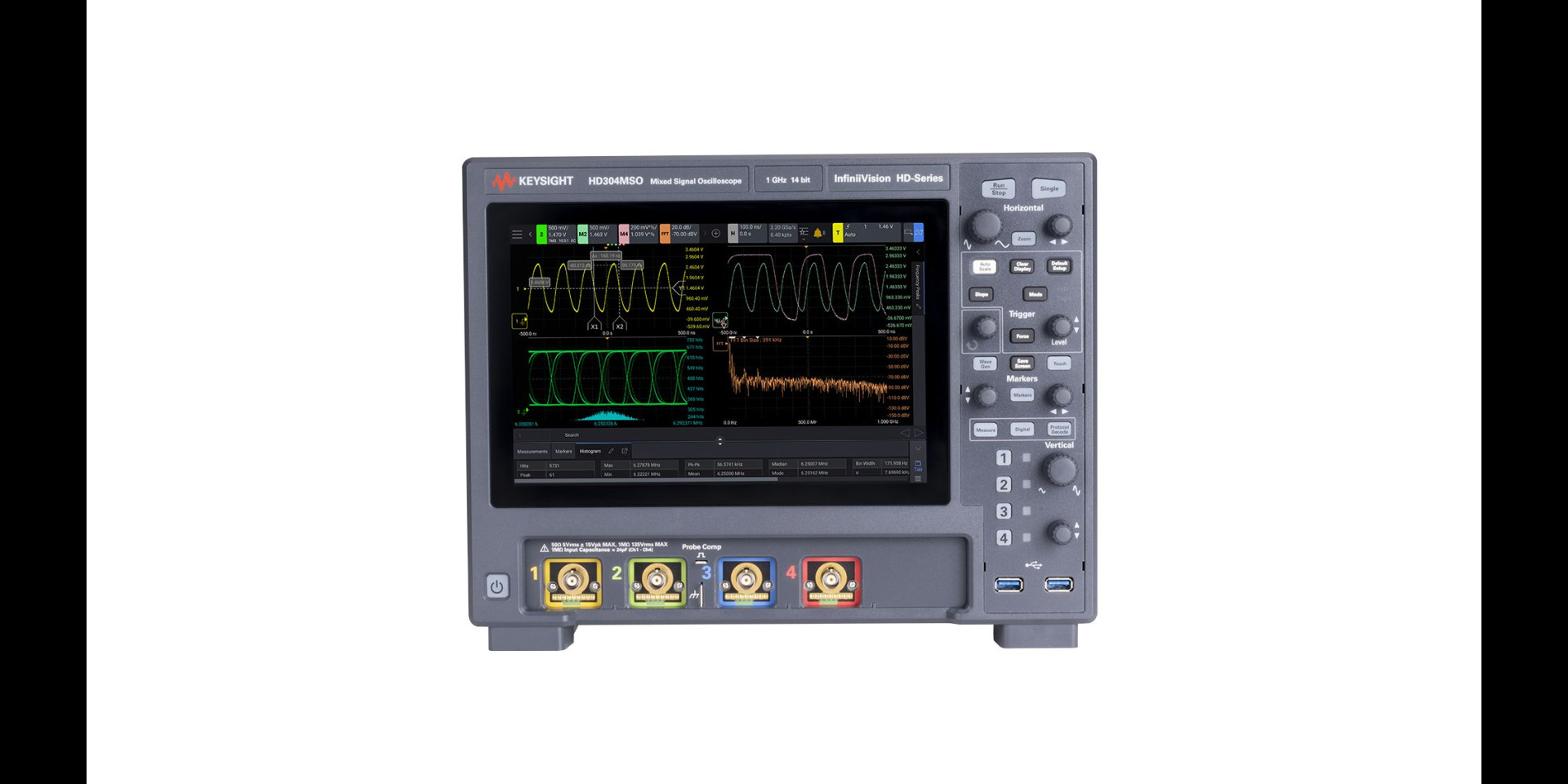

HD304MSO InfiniiVision HD3 Series Oscilloscope: 4 Analog + 16 Digital
Professional Grade Oscilloscope for Advanced Debugging
200 MHz - 1 GHz (Upgradable)Bandwidth
4 Analog + 16 DigitalChannels
3.2 GSa/sSample Rate
100 Mpts per channelMemory
Distributor
Fast Response
Recommended Solution Packages
Scenario-based oscilloscope configurations for validation and debug.
Bench Essentials
Baseline configuration for routine debug and verification.
Best for: R&D and bench validation
Key Parameters
Bandwidth headroomChannel countMemory depth
- Main unit (HD304MSO)
- Passive probes (x4)
- Standard warranty & certification
- Calibration certificate
* Includes compatibility check by our engineers.
Detailed Specifications
Technical Reference for HD304MSO
| Bandwidth | 200 MHz - 1 GHz (Upgradable) |
| Channels | 4 Analog + 16 Digital |
| Sample Rate | 3.2 GSa/s |
| Memory | 100 Mpts per channel |
| ADC Resolution | 14-bit (up to 16-bit) |
| Memory Depth | 100 Mpts per channel |
| Waveform Update Rate | > 1,300,000 wfms/s |
| Noise Floor | 50 µVrms (typical) |
| Display | 10.1-inch Full HD Capacitive Touch |
Product Overview
Keysight InfiniiVision HD3 Series: 14-bit ADC, 4x vertical accuracy, and uncompromised update rate.
Key Benefits
14-Bit ADC
4x signal resolution with custom ASIC technology.
MegaZoom 5
Uncompromised > 1.3 million wfms/s even with measurements on.
Fault Hunter
Automatically scans for glitches and anomalies.
Deep Memory
100 Mpts per channel standard, no interleaving.
For engineers designing and debugging the latest interface standards, the HD304MSO InfiniiVision HD3 Series Oscilloscope: 4 Analog + 16 Digital offers the highest accuracy and signal integrity in the industry.
