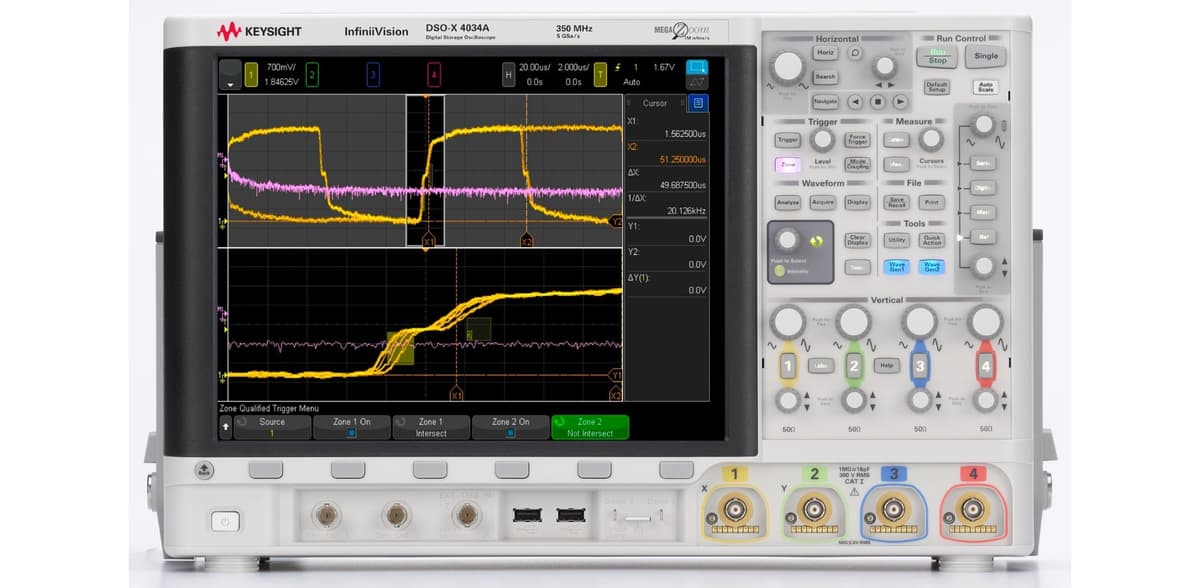

DSOX4034A Oscilloscope: 350 MHz, 4 Analog Channels
Professional Grade Oscilloscope for Advanced Debugging
350 MHzBandwidth
4 AnalogChannels
5 GSa/sSample Rate
4 MptsMemory
Distributor
Fast Response
Recommended Solution Packages
Scenario-based oscilloscope configurations for validation and debug.
Bench Essentials
Baseline configuration for routine debug and verification.
Best for: R&D and bench validation
Key Parameters
Bandwidth headroomChannel countMemory depth
- Main unit (DSOX4034A)
- Passive probes (x4)
- Standard warranty & certification
- Calibration certificate
* Includes compatibility check by our engineers.
Detailed Specifications
Technical Reference for DSOX4034A
| Bandwidth | 350 MHz |
| Channels | 4 Analog |
| Sample Rate | 5 GSa/s |
| Memory | 4 Mpts |
| Rise Time | ≤ 1 ns |
| Memory Depth | 4 Mpts |
| Waveform Update Rate | > 1,000,000 wfms/s |
| Input Impedance | 1 MΩ / 50 Ω |
| Horizontal Range | 2 ns/div to 50 s/div |
| Display | 12.1-inch Capacitive Touch |
Product Overview
The InfiniiVision 4000 X-Series boasts a 12.1-inch capacitive touch display and the industry’s only uncompromised > 1,000,000 waveforms/sec update rate.
Key Benefits
Touch Screen
Large 12.1-inch capacitive touch display for intuitive gesture control.
Fastest Update Rate
> 1,000,000 waveforms/sec update rate revealing infrequent glitches.
Zone Touch Trigger
Simply draw a box on the screen to isolate signal anomalies.
5-in-1 Integration
Oscilloscope, Logic Analyzer, Protocol Analyzer, WaveGen, and DVM.
For engineers designing and debugging the latest interface standards, the DSOX4034A Oscilloscope: 350 MHz, 4 Analog Channels offers the highest accuracy and signal integrity in the industry.
