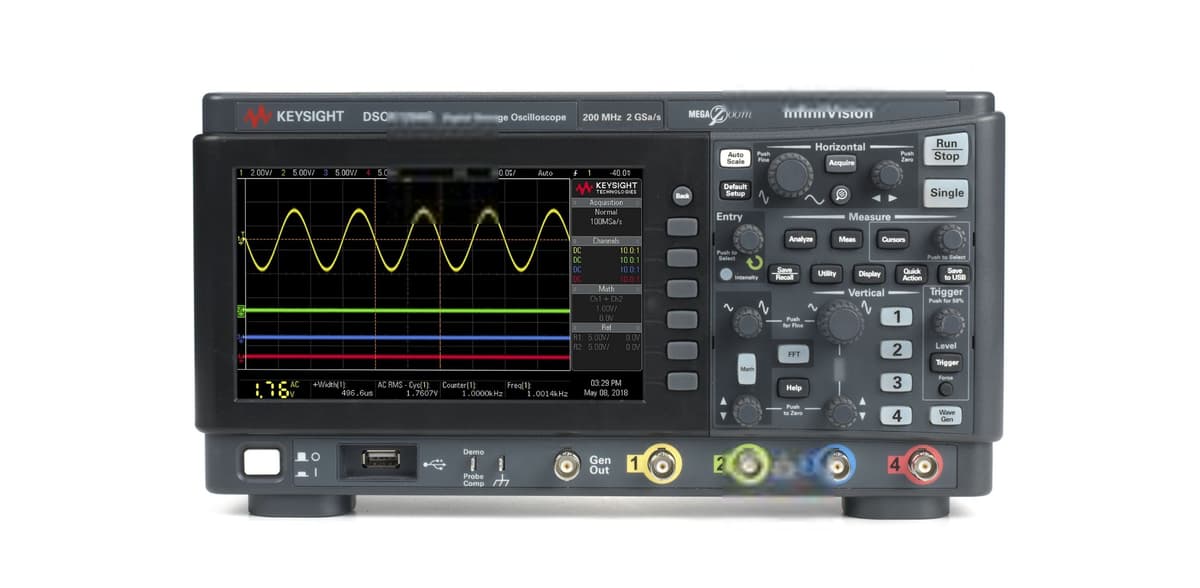

DSOX1204G Oscilloscope: 70/100/200 MHz, 4 Analog Channels, with WaveGen
Professional Grade Oscilloscope for Advanced Debugging
70/100/200 MHzBandwidth
4 AnalogChannels
2 GSa/s (interleaved) / 1 GSa/s (all)Sample Rate
2 MptsMemory
Distributor
Fast Response
Recommended Solution Packages
Scenario-based oscilloscope configurations for validation and debug.
Bench Essentials
Baseline configuration for routine debug and verification.
Best for: R&D and bench validation
Key Parameters
Bandwidth headroomChannel countMemory depth
- Main unit (DSOX1204G)
- Passive probes (x4)
- Standard warranty & certification
- Calibration certificate
* Includes compatibility check by our engineers.
Detailed Specifications
Technical Reference for DSOX1204G
| Bandwidth | 70/100/200 MHz |
| Channels | 4 Analog |
| Sample Rate | 2 GSa/s (interleaved) / 1 GSa/s (all) |
| Memory | 2 Mpts |
| Memory Depth | 2 Mpts (interleaved) / 1 Mpts (all) |
| Waveform Update Rate | > 200,000 wfms/s |
| Display | 7-inch TFT LCD WVGA |
| Input Impedance | 1 MΩ |
Product Overview
Keysight InfiniiVision 1000 X-Series: Professional performance with built-in WaveGen and Frequency Response Analysis. 4 Channels, 70/100/200 MHz.
Key Benefits
6-in-1 Integration
Oscilloscope, WaveGen, Serial Protocol Analyzer, DVM, Counter, Frequency Response Analyzer.
WaveGen
Built-in 20 MHz function generator with modulation capabilities.
Bode Plot
Frequency Response Analysis (Gain & Phase) included.
MegaZoom IV
Uncompromised performance with > 200,000 wfms/s update rate.
For engineers designing and debugging the latest interface standards, the DSOX1204G Oscilloscope: 70/100/200 MHz, 4 Analog Channels, with WaveGen offers the highest accuracy and signal integrity in the industry.
