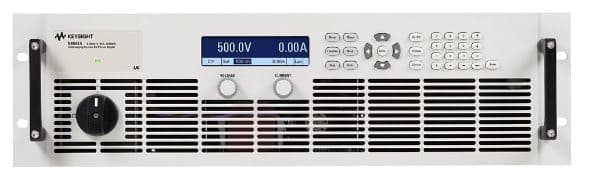

N8954A AutorangingDC Power Supply, 500 V, 90 A, 15000 W, 400 VAC

Product Overview

Voltage: 0 to 500 V

Current: 0 to 90 A

Power: 15000 W

Voltage range: 360 – 440 VAC

Voltage: 0.1% of full-scale

Current: 0.2% of full-scale

Autoranging output – does the job of multiple power supplies.

5 kW, 10 kW, and 15 kW maximum output power.

Up to 1500 V and up to 510 A.

14 different voltage, current, and power combinations available in 208 VAC or 400 VAC (28 total models).

Just the right amount of performance at just the right price.

Easily parallel units to create “one” power supply with >100 kW of power.

Built-in voltage and current measurement.

High power density, 15 kW in only 3U (5.25” / 13.34 cm).

Protection from over-voltage, over-current, and over-temperature.

LAN (LXI Core), USB, GPIB, and analog interfaces all standard.

For engineers designing and debugging the latest interface standards, the N8954A AutorangingDC Power Supply, 500 V, 90 A, 15000 W, 400 VAC offers the highest accuracy and signal integrity in the industry.
