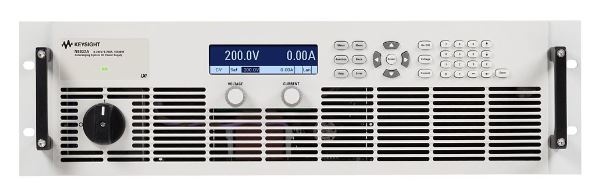

N8932A AutorangingDC Power Supply, 200 V, 210 A, 15000 W, 208 VAC

Product Overview

Voltage: 0 to 200 V

Current: 0 to 210 A

Power: 15000 W

Voltage range: 187 - 240 VAC

Voltage: 0.1% of full-scale

Current: 0.2% of full-scale

Autoranging output – does the job of multiple power supplies!

5 kW, 10 kW, and 15 kW maximum output power

Up to 1500 V and up to 510 A

14 different voltage, current, and power combinations available in 208 VAC or 400 VAC (28 total models)

Just the right amount of performance at just the right price

Easily parallel units to create “one” power supply with >100 kW of power

Built-in voltage and current measurement

High power density, 15 kW in only 3U (5.25” / 13.34 cm)

Protection from over-voltage, over-current, and over-temperature

LAN (LXI Core), USB, GPIB, and analog interfaces all standard

For engineers designing and debugging the latest interface standards, the N8932A AutorangingDC Power Supply, 200 V, 210 A, 15000 W, 208 VAC offers the highest accuracy and signal integrity in the industry.
