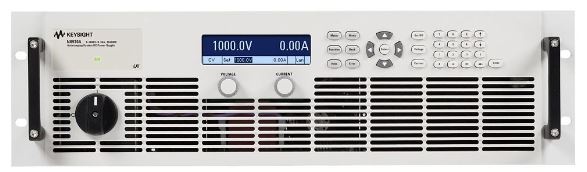

N8930A AutorangingDC Power Supply, 1000 V, 30 A, 10000 W, 208 VAC

Product Overview

autoranging output

5 kW, 10 kW, and 15 kW maximum output power

up to 1,500 V and 510 A

14 voltage, current, and power combinations available in 208 VAC or 400 VAC (28 total models)

parallel units to create “one” power supply with > 100 kW of power

built-in voltage and current measurement

high power density, 15 kW in only 3U (5.25” / 13.34 cm)

protection from overvoltage, over-current, and over-temperature

LAN (LXI Core), USB, GPIB, and analog interfaces all standard

voltage: 0 to 1,000 V

current: 0 to 30 A

power: 10,000 W

voltage range: 187 to 240 VAC

voltage: 0.1% of full scale

current: 0.2% of full scale

For engineers designing and debugging the latest interface standards, the N8930A AutorangingDC Power Supply, 1000 V, 30 A, 10000 W, 208 VAC offers the highest accuracy and signal integrity in the industry.
