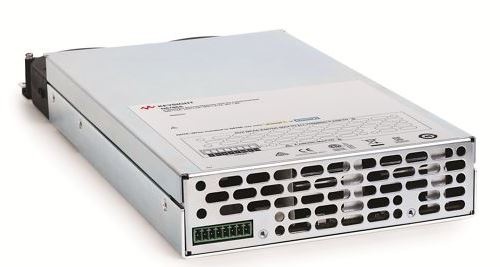

N6786A 适合功能测试的Power Supply/测量单元, 多量程, 80 W, 倍宽

Product Overview

Stable, glitch-free sourcing and sinking (charge/eLoad), just like a battery.

Programmable output resistance mimics the battery’s internal resistance.

Characterize your device’s off-, sleep-, and transmit-mode current in one pass and one picture with seamless measurement ranging technology — no need to make multiple measurement sweeps.

Perform battery rundown tests and characterize how your device performs with an actual battery with the SMU’s ammeter (zero-burden current shunt) mode.

Voltage: 20 V / 15 V / 10 V / 6 V

Current: ± 4 A / ± 5 A / ± 6.7 A / ± 8 A

Power: Up to 80 W

CV peak-to-peak: 15 mV

CVrms: 1.5 mV

Voltage, 20 V, 15 V, 10 V, and 6 V ranges: 0.025% + 1.8 mV

Current, 4 A, 5 A, 6.7 A, and 8 A ranges: 0.04% + 1.4 mA

Voltage, 20 V range: 0.025% 1.8 mV

Current, 8 A range: 0.04% + 1.5 mA

Current, 100 mA range: 0.025% + 10 µA

Current, 1 mA range: 0.025% + 100 nA

For engineers designing and debugging the latest interface standards, the N6786A 适合功能测试的Power Supply/测量单元, 多量程, 80 W, 倍宽 offers the highest accuracy and signal integrity in the industry.
