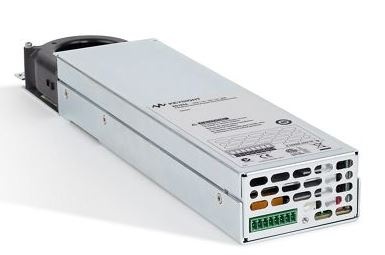

N6784A 4 象限通用源表Module, ±20 V / ±1 A 或 ±6 V / ±3 A, 20 W

Product Overview

Glitch-free sourcing and measurement ― change output and measurement ranges without any glitches.

4-quadrant operation ― perform as a bipolar voltage or current source or as a bipolar CV or CC electronic load.

Four current programming ranges - precisely source current down µA.

Four current measurement ranges ― precisely capture the current levels of the DUT during different modes of operation.

Excellent transient response ― keep voltage or current stable during high-speed load changes.

Fast modulation of DC ― create waveforms up to 100 kHz to stimulate or load down the DUT.

High-speed digitized measurements ― capture/view the power consumption of the DUT up to every 5 µs with built-in 200 kHz digitizer.

Voltage: Up to ±20 V

Current: Up to ±3 A

Power: 20 W

Voltage, 20 V range: 0.025% + 1.8 mV

Voltage, 6 V range: 0.025% + 600 µV

Current, 3 A and 1 A ranges: 0.04% + 300 µA

Current, 10 mA range: 0.25% + 5 µA

The output voltage can change in 10 µs or at 100 kHz into a resistive load.

Voltage, 20 V range: 0.025% + 1.2 mV

Current, 3 A range: 0.03% + 250 µA

Current, 100 mA range: 0.025% + 10 µA

Current 10 µA range: 0.025% + 8 nA

For engineers designing and debugging the latest interface standards, the N6784A 4 象限通用源表Module, ±20 V / ±1 A 或 ±6 V / ±3 A, 20 W offers the highest accuracy and signal integrity in the industry.
