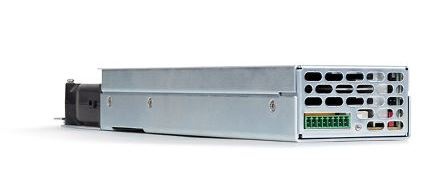

N6782A 适用于功能测试的 2 象限源表Module, 20 V / ±1 A 或 6 V / ±3 A, 20 W

Product Overview

voltage: Up to 20 V

current: Up to ±3 A

power: 20 W

voltage, 20 V range: 0.025% + 1.8 mV

voltage, 6 V range: 0.025% + 600 µV

current, 3 A and 1 A ranges: 0.04% + 300 µA

current, 300 mA range: 0.03% + 150 µA

output voltage can change in 10 µs or at 100 kHz into a resistive load

voltage, 20 V range: 0.025% + 1.2 mV*

current, 3 A range: 0.03% + 250 µA*

current, 100 mA range: 0.025% + 10 µA*

current 10 µA range: 0.025% + 8 nA

glitch-free sourcing and measurement ― change output and measurement ranges without any glitches

2-quadrant operation ― perform as a voltage or current source or as a CV or CC electronic load

four current measurement ranges ― precisely capture the current levels of the DUT during different modes of operation

excellent transient response ― keep voltage or current stable during high-speed load changes

fast modulation of DC ― create waveforms up to 100 kHz to stimulate or load down the DUT

high-speed digitized measurements ― capture/view the power consumption of the DUT up to every 5 µs with built-in 200 kHz digitizer

For engineers designing and debugging the latest interface standards, the N6782A 适用于功能测试的 2 象限源表Module, 20 V / ±1 A 或 6 V / ±3 A, 20 W offers the highest accuracy and signal integrity in the industry.
