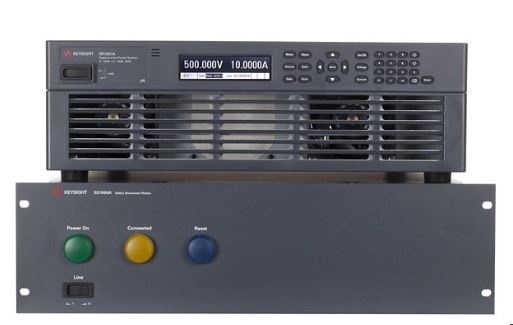

EV1003A HEV / EV Power-Converter Test Solution
Professional Grade Oscilloscope for Advanced Debugging
Recommended Solution Packages
Power supply bundles by scenario.
Bench Starter
General bench power provisioning.
- Main unit (EV1003A)
- Remote sense kit
- Rack ears
- Safety cables
* Includes compatibility check by our engineers.
Detailed Specifications
Technical Reference for EV1003A
| Leverage features rarely found in 20 kW power sources | list mode, high measurement accuracy |
| Reduce footprint with compact size | up to 20 kW of sourcing and loading in 3U; compare to typical 6 kW load at 4U and typical 12 kW load at 6U |
Product Overview
Get sourcing (power supply) and sinking (electronic load) up to 2000 V, up to ±800 A, and up to 20 kW
Create up to 200 kW power or loading through easy parallel connection of up to 10 units
Leverage features rarely found in 20 kW power sources: list mode, high measurement accuracy
More accurately emulate high-voltage, high-power battery up to 50 Ohms with programmable resistance (model dependent)
Reduce footprint with compact size: up to 20 kW of sourcing and loading in 3U; compare to typical 6 kW load at 4U and typical 12 kW load at 6U
For engineers designing and debugging the latest interface standards, the EV1003A HEV / EV Power-Converter Test Solution offers the highest accuracy and signal integrity in the industry.
