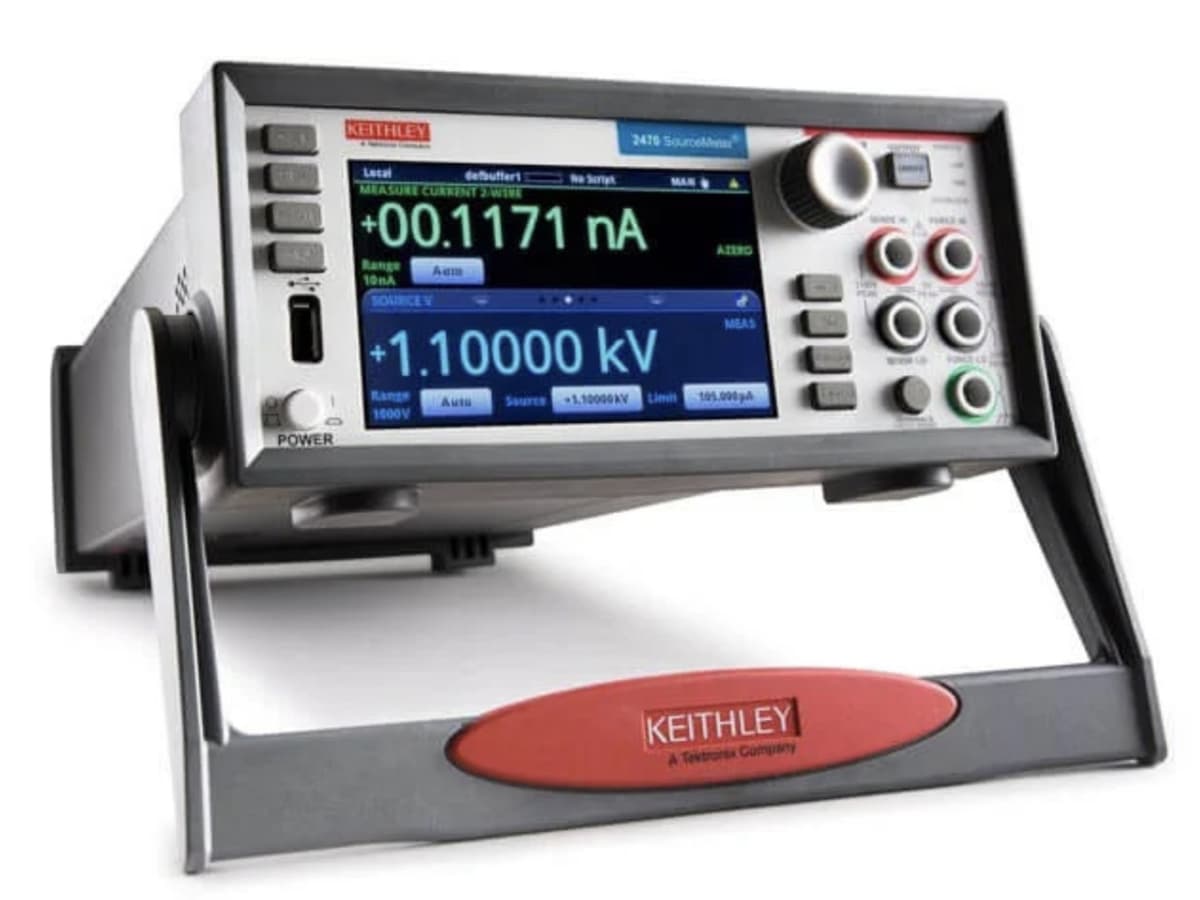

Keithley 2470 Graphical Source Measure Unit
面向高阶调试的专业级示波器
推荐方案套装
面向 IV 表征的 SMU 配置。
IV 表征配置
高精度源测与合规控制。
- 主机（2470）
- 三同轴线缆
- 探针台接口
- 脉冲 IV 选件
* 工程师将进行兼容性核查。
详细规格
2470 的技术参考
| Channels | 1 Channel |
产品概览
Four-quadrant precision voltage and current source/load with high-voltage capability
Single channel SMU with 1A maximum current sourcing/ranging capability
1100V maximum voltage sourcing/ranging for high-voltage applications
Ultra-high measurement resolution: 10fA current / 100nV voltage
20W maximum power output for high-voltage device characterization
Touch, Test, Invent® philosophy with specialized high-voltage interface
Simultaneous sourcing and measurement capabilities
High-voltage precision IV characterization and parametric testing
High-voltage semiconductor device testing and validation
Insulator and dielectric material characterization
High-voltage electronic component testing
Specialized research and development applications
High-voltage production testing environments
Advanced triggering and sweep capabilities for high-voltage measurements
Specialized data logging and graphical analysis for HV applications
SCPI programming support for high-voltage automation
Enhanced safety features for high-voltage operation
Multiple connectivity options with safety considerations
Specialized benchtop design for high-voltage safety
High-resolution color touchscreen with safety indicators
High-voltage measurement functions and safety features
Quick start guide with safety instructions
Power cord
High-voltage test leads with safety features
USB cable
High-voltage software package
面向最新接口标准的设计与调试，Keithley 2470 Graphical Source Measure Unit 提供行业领先的精度与信号完整性。
