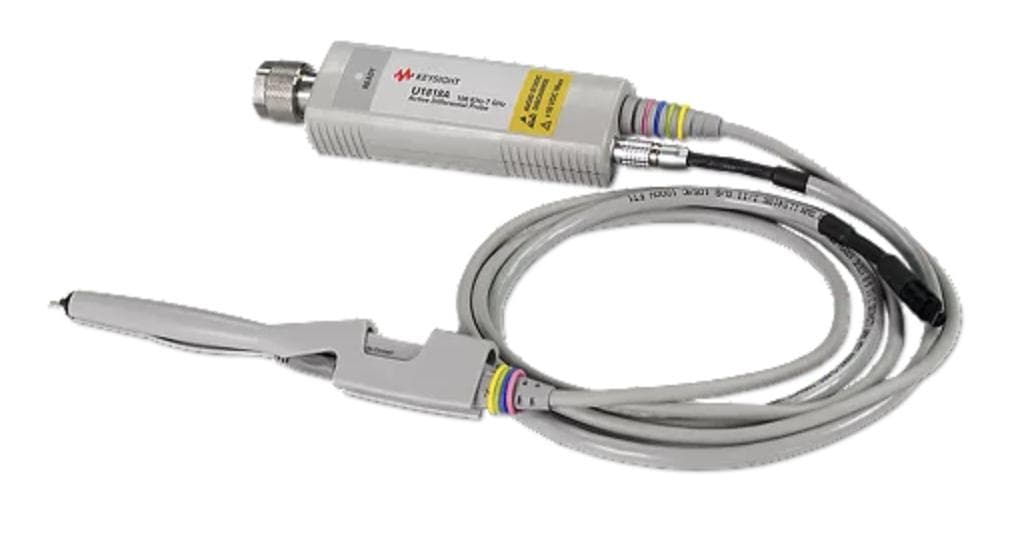

U1818A Active Differential Probe, 100 kHz to 7 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（U1818A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
U1818A 的技术参考
产品概览
The wide bandwidth and flat frequency response of +/- 1.5 dB ensure excellent measurement accuracy and help you achieve better product specifications.
Low noise floor, less than -130 dBm/Hz from 10 MHz to 7 GHz, enables measurements at low signal amplitudes
Bias power can be easily supplied via the Keysight RF/Microwave instrument's probe power port or benchtop power supply, providing the user with great flexibility
NOTE: Probe is not included and must be ordered separately.
Recommended probe
N5380B InfiniiMax II 12 GHz Differential SMA Adapter
N5381B InfiniiMax 12 GHz Differential Solder-in Probe
N2839A InfiniiMax II 12 GHz differential browser probe
N5425B InfiniiMax 12 GHz ZIF solder-in probe
N5426A InfiniiMax 12 GHz ZIF Probe - 10-piece set
The Keysight U1818A 100 kHz to 7 GHz active differential probe makes high-frequency in-circuit measurements easy when using network analyzers, spectrum analyzers, and signal source analyzers. Featuring a flat frequency response, low noise floor, and the ability to power directly from the instrument connection, the U1818A can take advantage of the entire dynamic range of Keysight RF analyzers for accurate measurements.
面向最新接口标准的设计与调试，U1818A Active Differential Probe, 100 kHz to 7 GHz 提供行业领先的精度与信号完整性。
