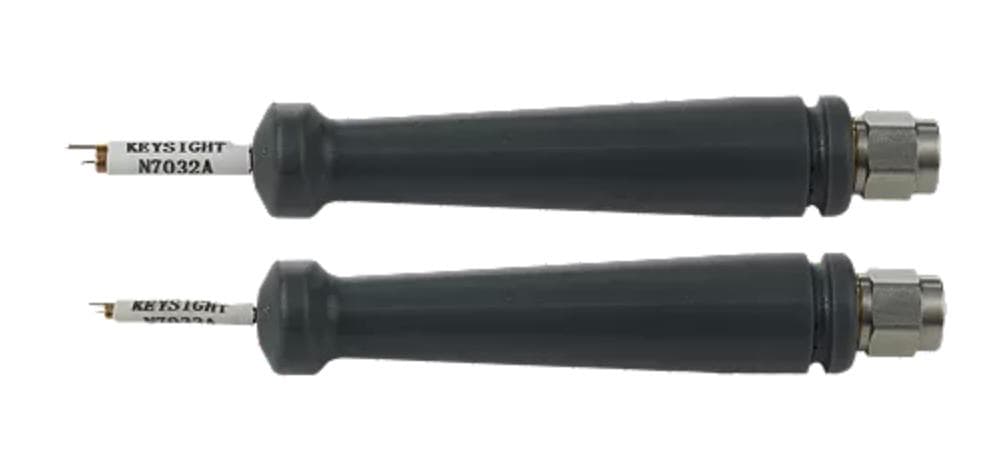

N7032A Power Spot Probe, 4 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N7032A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N7032A 的技术参考
产品概览
Features
4GHz bandwidth
Suitable for macro probing of 0603 and 0805 packages (inch codes)
1:1 attenuation ratio
Use spring pin for grounding to ensure reliable contact
Ergonomic handle
The N7032A power point probe is suitable for power integrity measurements and can detect specified signals on the capacitors of the power distribution network. Specifically the common 0603 and 0805 package size capacitors (these are imperial codes and converted to metric codes are 1608 and 2012).
This browser probe uses spring-loaded pins for grounding, allowing it to support a variety of probing angles and ensure a reliable connection. Plus, it comes with a non-slip ergonomic handle.
This browser probe offers maximum probing efficiency when used with the Keysight 1250-4403 Rotary SMA Adapter. The rotating SMA adapter allows continuous rotation to prevent the main probe cable from twisting due to torque.
面向最新接口标准的设计与调试，N7032A Power Spot Probe, 4 GHz 提供行业领先的精度与信号完整性。
