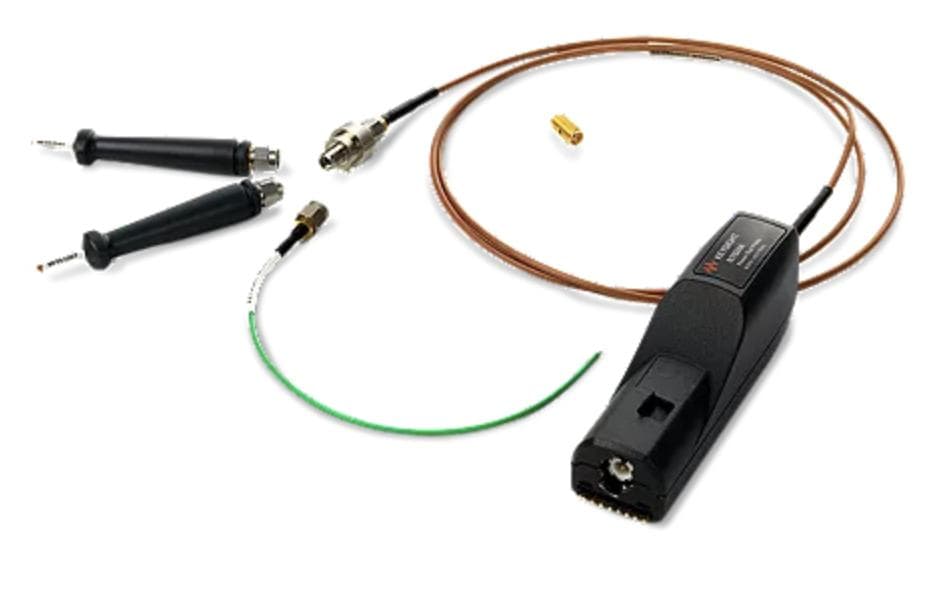

N7024A Power Probe, 6 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N7024A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N7024A 的技术参考
产品概览
Features
Low noise: The probe has a 1.3:1 attenuation ratio, which increases the oscilloscope’s noise floor by only 30%
Wide offset range: A wide offset range of +/-15.25 V allows the user to use the oscilloscope’s most sensitive settings and center the signal on the screen
Small DC load effect: 50 kΩ DC input impedance will not add significant load to the DC power supply
Large effective signal range: In addition to a very large offset range, the effective signal range is as wide as +/-600 mV, allowing users to measure large jumps in supply voltage
Large bandwidth: 6 GHz bandwidth makes it easy to capture fast transients that distort clocks and digital data
Designed for power integrity measurements, the N7024A power probe features mV-level sensitivity, allowing users to more accurately measure noise, ripple and transients on DC power supplies. This probe is ideal for measuring random and periodic disturbances (PARD), static and dynamic load response, programmable power supply response, and similar power integrity measurements. Today, most products have increasingly stringent DC power tolerance requirements, and the N7024A power probe will help users ensure that the products they design meet these requirements.
The N7024A power probe can be used with<=33 GHz 的 Keysight Infiniium S、9000、90000A、90000X、V、Z 和 UXR 系列示波器配合使用。 请注意，需要 Infiniium 示波器软件 6.50.00906 或更高版本，以操作 Infiniium 9000 或 90000A 示波器上的 N7024A。
面向最新接口标准的设计与调试，N7024A Power Probe, 6 GHz 提供行业领先的精度与信号完整性。
