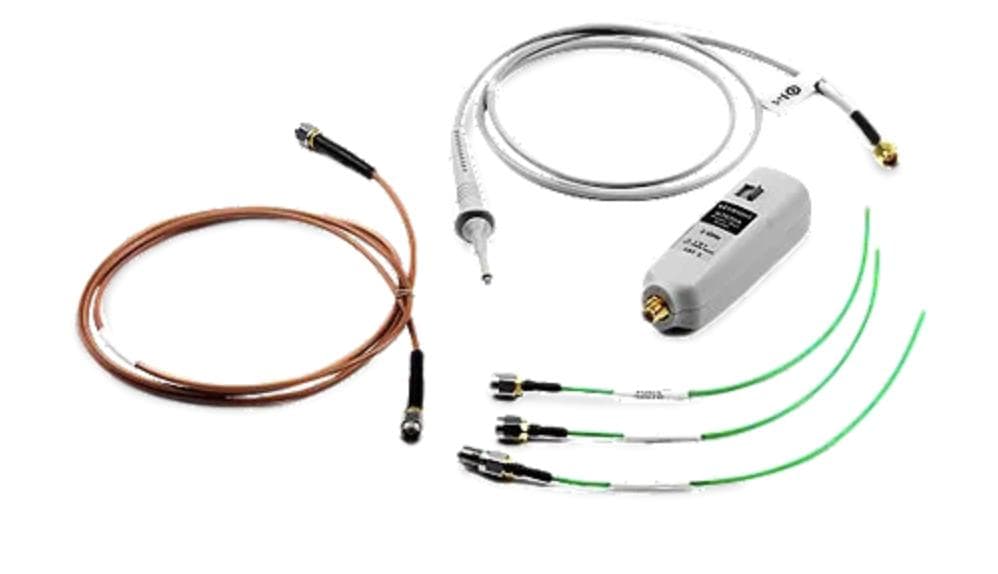

N7020A Power Probe, 2 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N7020A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N7020A 的技术参考
产品概览
Features
Features
Low noise: The probe has a 1:1 attenuation ratio, increasing the oscilloscope’s noise floor by only 10%
Wide offset range: A wide offset range of +/-24 V allows the user to use the oscilloscope’s most sensitive settings and center the signal on the screen
Low DC loading effect: 50 kΩ DC input impedance does not add significant load to the DC power supply
Wide effective signal range: In addition to the wide offset range, the effective signal range is as wide as +/-850 mV, allowing the user to measure large jumps in supply voltage
Wide bandwidth: 2 GHz bandwidth makes it easy to capture fast transients that distort clocks and digital data
Designed for power integrity measurements, the N7020A power probe features mV-level sensitivity, allowing users to more accurately detect noise, ripple and transients on DC power supplies. This probe is ideal for measuring random and periodic disturbances (PARD), static and dynamic load response, programmable power supply response, and similar power integrity measurements. Today, most products have increasingly stringent DC power tolerance requirements, and the N7020A power probe will help users ensure that the products they design meet these requirements.
The N7020A power probe works with Keysight's InfiniiVision 3000T and 4000 X-Series oscilloscopes, InfiniiVision 6000 X-Series oscilloscopes ordered after February 1, 2016, and Infiniium S-Series DSO and MSO high-resolution oscilloscopes, Infiniium 9000 Series DSOs and MSOs running version 5.20 or later software used with an oscilloscope. If you need higher bandwidth, the N7024A power probe has bandwidths up to 6 GHz and can be used with S, V, and Z Series Infiniium oscilloscopes.
面向最新接口标准的设计与调试，N7020A Power Probe, 2 GHz 提供行业领先的精度与信号完整性。
