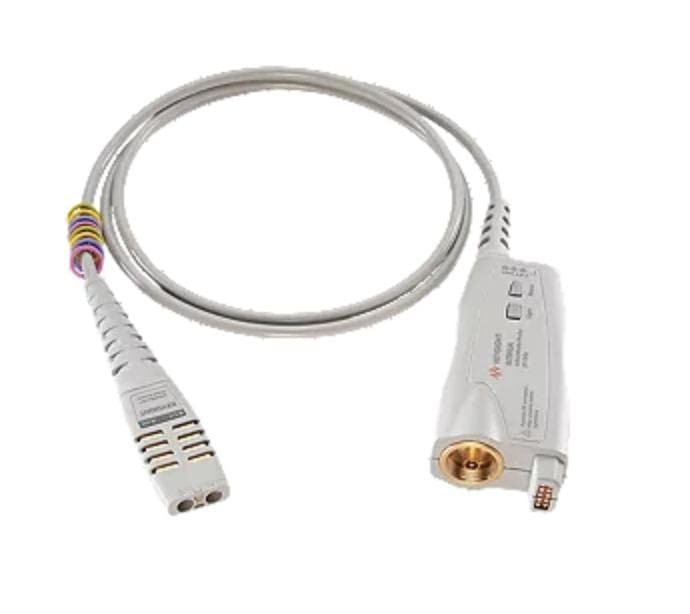

N7000A InfiniiMax III+ Series Probe Amplifier, 8 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N7000A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N7000A 的技术参考
产品概览
Features
InfiniiMode
Compatible with all InfiniiMax III/III+ accessories and new QuickTip probes
Probe amplifiers are loaded with “measured” S-parameters for more accurate AC correction
Connects directly to Infiniium 90000X/Q and V-Series oscilloscopes (requires software version 5.50 or higher)
The bandwidth-enhanced N7000A InfiniiMax III+ 8 GHz probe amplifier is designed for general-purpose, high-speed differential bus probing.
Keysight's InfiniiMax III+ probes feature InfiniiMode technology, which greatly expands measurement capabilities and usability to fully measure differential signals. Engineers can connect the InfiniiMax III+ probe once and then simply change its settings to measure differential signals, single-ended A or B signals, and the common-mode component of differential signals.
Like InfiniiMax III technology, each individual InfiniiMax III+ probe amplifier contains its own unique S-parameters, and this frequency response data can be combined with the S-parameters of other probes to flatten the probe's amplitude and phase response, resulting in greater measurement accuracy. By correcting the response of a specific probe amplifier, the probe calibration results can be made more accurate, significantly improving measurement accuracy.
面向最新接口标准的设计与调试，N7000A InfiniiMax III+ Series Probe Amplifier, 8 GHz 提供行业领先的精度与信号完整性。
