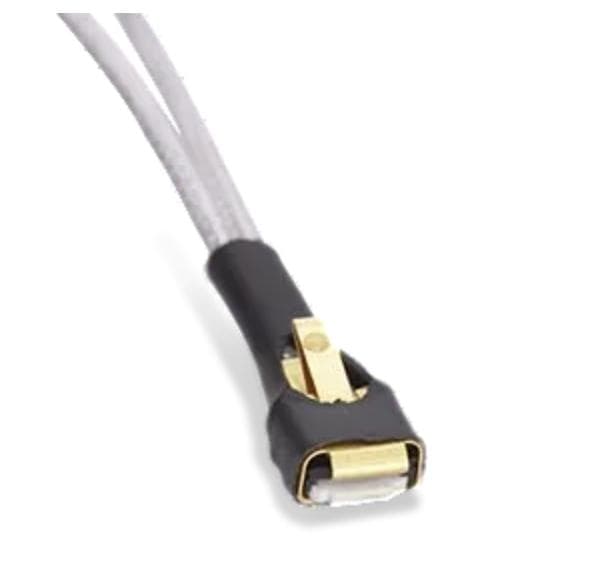

N5439A InfiniiMax III ZIF probe
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N5439A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N5439A 的技术参考
产品概览
Highlights
bandwidth:
28 GHz (typical)
Tr = 20.9 psec (10%-90%, only for probe with N2803A)
Input impedance
C diff = 32 fF、C se = 48 fF
R diff = 100 kΩ、R se = 50 kΩ
Input voltage range
1.6 Vpp ±0.8 V（HD2&3 <-38dB）、2.5 Vpp ±1.25 V（HD2&3 <-34dB）（使用 N5440A 450 Ω ZIF 探针时）*
0.8 Vpp ±0.4 V（HD2&3 <-38dB）、1.6 Vpp ±0.8 V（HD2&3 <-34dB）（使用 N5447A 200 Ω ZIF 探针时）*
Note: HD (harmonic distortion rate)<-38 dB 为标准值；对于 < -34dB 的更宽输入范围，失真率略有增加
The N5439A ZIF probe provides 28 GHz bandwidth and is economical and practical with replaceable tips. ZIF probes can remain on the device under test as the probe is moved from one probing point to the next due to their extremely low loading. Ordering the N5440A (450 Ω ceramic), N5447A (200 Ω ceramic), or the new N2838A (450 Ω PC board) includes a set of 5 ZIF probes with plastic prongs to assist in soldering the probes to the device under test. The N2838A PC Board ZIF probe, when used in conjunction with the N2803A and N5439A, significantly increases the robustness of the ZIP probe while maintaining bandwidth performance at 25 GHz. The ZIF probe is not included in N5439A. Variable spacing is 5 mil – 80 mil (or 0.127 mm – 2 mm). For hands-free operation, use the N2787A 3D probe positioner. Compatible with all InfiniiMax III probe amplifiers.
面向最新接口标准的设计与调试，N5439A InfiniiMax III ZIF probe 提供行业领先的精度与信号完整性。
