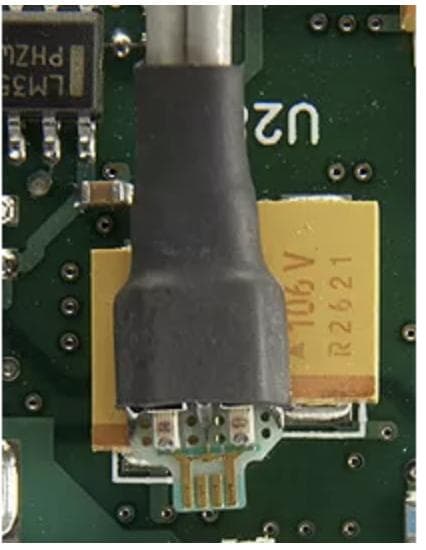

N5425B InfiniiMax Differential ZIF Probe, 18 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N5425B）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N5425B 的技术参考
产品概览
Features
bandwidth
18 GHz (using MX0023A) and 12 GHz (using 1169B)
Input impedance and capacitance
Differential input resistance: 50 kΩ
Differential input capacitance: 0.33 pF
Single-ended input resistance: 25 kΩ
Single-ended input capacitance: 0.53 pF
The N5425B ZIF probe with ZIF probe is the ideal solution for probing signals at a large number of test points in a small space, such as a DDR memory system.
ZIF (zero insertion force) probes and tips can significantly reduce probe costs when many points need to be measured. ZIF probes require the use of ZIF probes that can be soldered to different locations on the circuit board. ZIF probes can make measurements back and forth between these probes.
When used with the MX0023A InfiniiMax 25 GHz RC probe amplifier, it provides a flat frequency response up to 18 GHz, making it a very economical solder-in probe solution.
This probe does not include a ZIF tip. When ordering these probes, order the N5426A ZIF probe or the N5451A long-line ZIF probe.
面向最新接口标准的设计与调试，N5425B InfiniiMax Differential ZIF Probe, 18 GHz 提供行业领先的精度与信号完整性。
