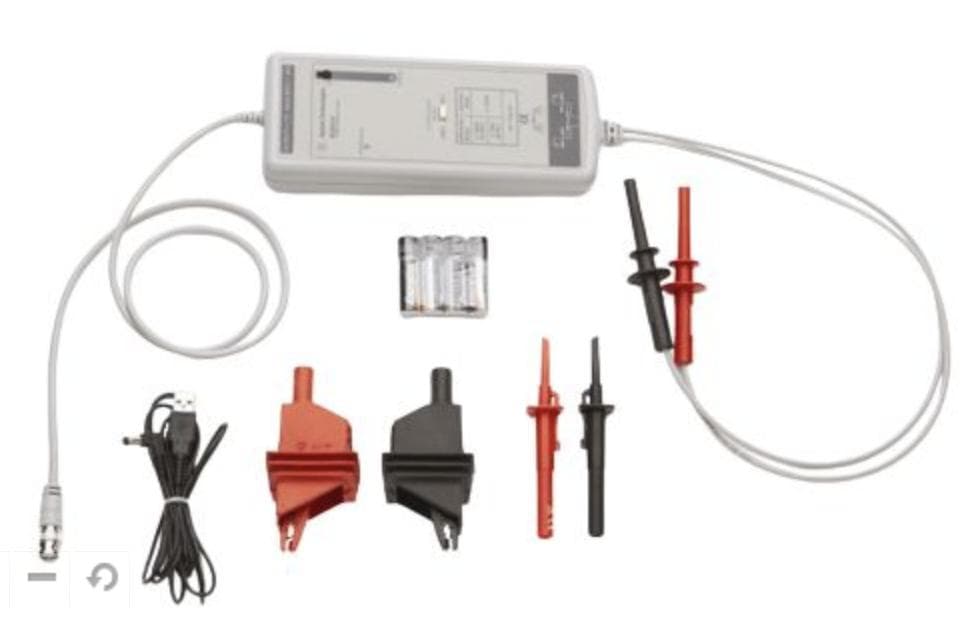

N2891A High Voltage Differential Probe, 70 MHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N2891A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N2891A 的技术参考
产品概览
Main features:
70 MHz bandwidth
User selectable setting of 100:1 or 1000:1 attenuation ratio
Measures differential and common-mode voltages up to ±7000 V in 1000:1 mode
Powered by built-in 4 AA batteries or can be powered by the oscilloscope/computer’s USB host port
Included accessories:
Two safety hooks front
Two high voltage alligator clips
Compatible oscilloscopes:
Compatible with any oscilloscope with 1 MΩ BNC input
The oscilloscope uses the N2891A 70 MHz high voltage differential probe to make safe and accurate floating measurements. With the N2891A differential probe, traditionally grounded Keysight oscilloscopes can also be used to measure floating signals up to ±7000 V differential and common-mode voltages.
This probe is compatible with oscilloscopes with 1 MΩ BNC inputs. The probe is powered by the included 4 AA batteries or can be powered from the oscilloscope or computer's USB host port via the included USB power cord.
面向最新接口标准的设计与调试，N2891A High Voltage Differential Probe, 70 MHz 提供行业领先的精度与信号完整性。
