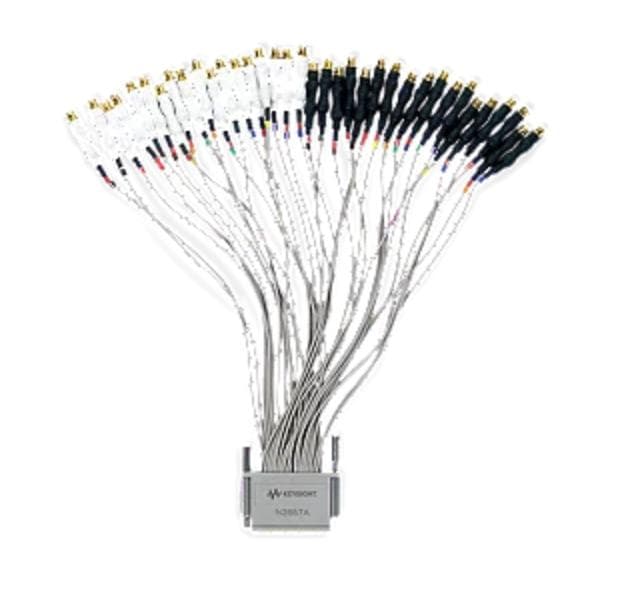

N2887A InfiniiMax Soft Touch Pro Probe Adapter
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N2887A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N2887A 的技术参考
产品概览
Features
Keysight Pro Series (36-channel) soft-touch connectorless logic analyzers can be connected to Keysight InfiniiMax I, II Series probe amplifier input connectors
Supports Pro Series soft-contact single-ended and differential interfaces and pinouts
Bandwidth up to 4 GHz
Input resistance: The resistance from each input to ground is 25 kΩ, and the resistance between inputs is 50 kΩ.
Comes with 5 holding modules
Eliminate timing skew between channels using the N2887-60002 deskew fixture
Keysight Technologies develops connector-less logic analyzer probes based on soft-contact probing technology. Connectorless logic analyzer probing uses a series of probe adapter clips that replace the connectors typically attached to the target circuit board. This eliminates the loading effect generated by the connector body and reduces the load the probe places on the target.
The N2887A InfiniiMax Soft-Touch Pro probe connects probes from Keysight's Pro Series soft-touch logic analyzers to the GPO input connectors of Keysight's InfiniiMax 1130A-1134A and 1168A-69A Series probe amplifiers, allowing users to perform high-density, multi-channel probing. Each adapter supports soft-contact single-ended and differential interfaces and pinouts.
面向最新接口标准的设计与调试，N2887A InfiniiMax Soft Touch Pro Probe Adapter 提供行业领先的精度与信号完整性。
