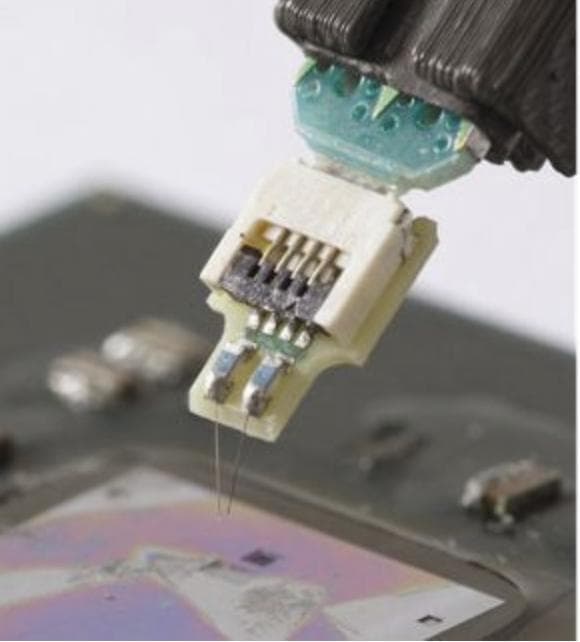

N2884A InfiniiMax Differential Fine Wire Probe
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N2884A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N2884A 的技术参考
产品概览
Features
Bandwidth: 12 GHz (with 1169A InfiniiMax amplifier and N5425A ZIF probe)
Rise time: 33 ps (probe only)
Input capacitance: 350 fF (differential), 520 fF (single-ended)
Tungsten detection wire spool diameter: 22 microns
Point radius:<0.1 微米
100 mil long tungsten wire
The N2884A InfiniiMax Differential Fine Wire Probe is a high-fidelity, high-bandwidth solution for probing active integrated circuits (ICs). It is targeted at R&D and test engineers who use oscilloscopes to debug and test ICs. The N2884A provides an innovative method of differential detection.
Leveraging Keysight's low-cost ZIF probe technology, the N2884A provides a flat frequency response across the entire 12 GHz bandwidth, significantly eliminating in-band resonances caused by distortion and loading effects that can affect the probe. While other solutions on the market typically measure the change in voltage as the distance from ground to detection point increases, the N2884A measures voltage versus adjacent local ground (or other node) on the device under test. This results in better common-mode noise rejection, resulting in excellent signal integrity in measurements.
The N2884A comes with a probe arm and a set of 5 probes. As shown, the probe arm is compatible with micropositioners available from Wentworth Laboratories. You can order directly from Wentworth Laboratories - www.wentworthlabs.com,
Can also be ordered from Keysight Technologies. If you order through Keysight, you must order the following two parts:
N2884-64702 (Wentworth 2026-90409 PVX 400-M: Manual Linear Manipulator Magnetic Base)
N2884-64703 (Wentworth 5-00-4711 short nose articulated jib front)
面向最新接口标准的设计与调试，N2884A InfiniiMax Differential Fine Wire Probe 提供行业领先的精度与信号完整性。
