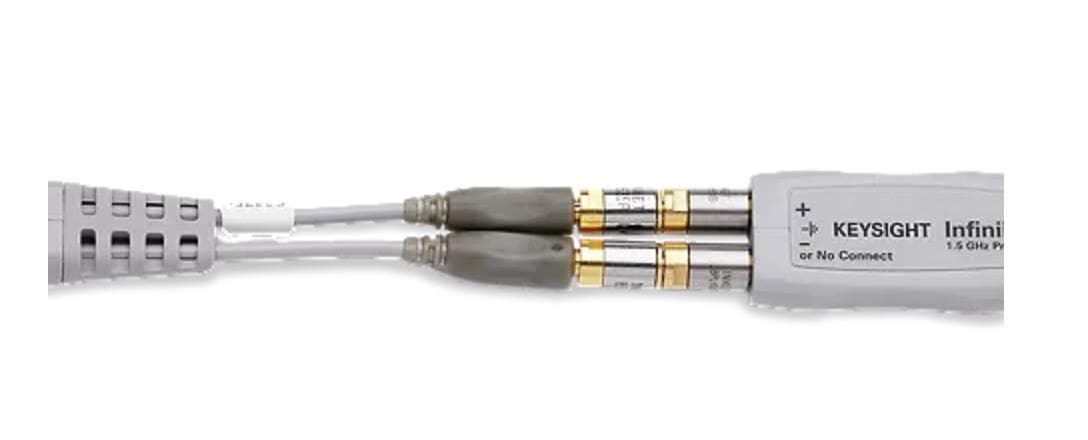

N2880A InfiniiMax Inline Attenuator Kit
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N2880A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N2880A 的技术参考
产品概览
Features
Kit contains
A pair of 6 dB attenuators
A pair of 12 dB attenuators
A pair of 20 dB attenuators
Keysight InfiniiMax probes have a dynamic range of 5 Vpp for the 113xA series and 3.3 Vpp for the 1168A/69A. If the application requires measuring larger signals with faster edge speeds, the N2880A in-line coaxial attenuator kit can increase the dynamic range of the probe system by 50 Vpp and increase the offset range to +/-30V without affecting the bandwidth or rise time characteristics of the probe system. The N2880A offers a pair of 6 dB, 12 dB, and 20 dB attenuators in one kit. Probe amplifier and probe not included.
面向最新接口标准的设计与调试，N2880A InfiniiMax Inline Attenuator Kit 提供行业领先的精度与信号完整性。
