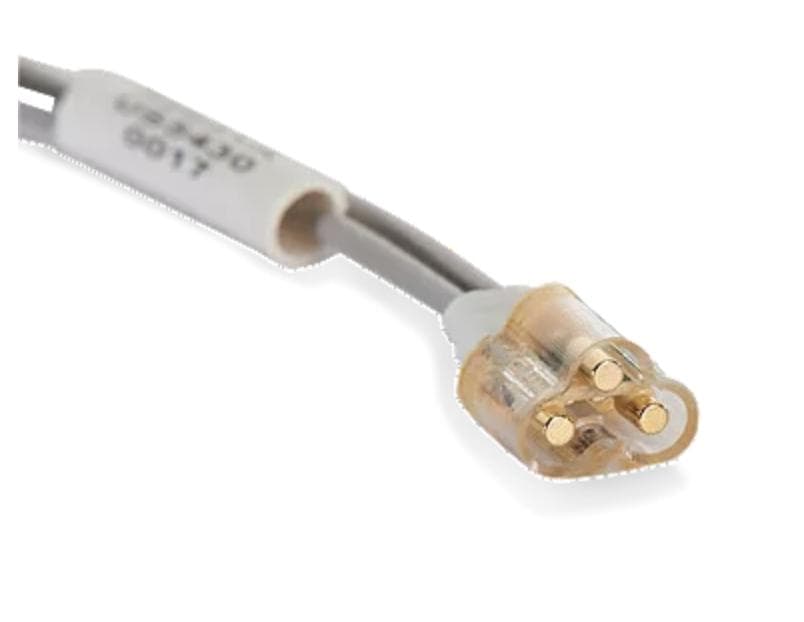

N2851A InfiniiMax I/II QuickTip probe
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N2851A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N2851A 的技术参考
产品概览
Features
QuickTip differential probes are compatible with InfiniiMax I/II probe amplifiers.
Can be connected/disconnected quickly.
Achieves up to 12 GHz bandwidth when used with InfiniiMax 1169A.
The N2851A QuickTip probe for InfiniiMax I/II is Keysight’s only probe that offers quick connect/disconnect capabilities when measuring multiple high-speed test points. The QuickTip design uses three small gold-plated magnets that act as the actual contacts for the gold-plated steel buttons on the probe. Engineers can install multiple N2849A QuickTip probes on the device under test to quickly and reliably measure multiple probe points.
The N2849A QuickTip probe is universal between the N2848A QuickTip probe for InfiniiMax III/III+ and the N2851A QuickTip probe for InfiniiMax I/II, so signals can be easily viewed regardless of probe architecture. The InfiniiMax 1169A probe amplifier and N2851A/N2849A QuickTip probes/probes allow you to achieve bandwidths up to 12 GHz. When using the QuickTip N2851A with an Infiniium oscilloscope, you need software version 5.30 or higher.
面向最新接口标准的设计与调试，N2851A InfiniiMax I/II QuickTip probe 提供行业领先的精度与信号完整性。
