N2848A InfiniiMax III QuickTip probe
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N2848A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N2848A 的技术参考
产品概览
Highlights
bandwidth
Up to 16 GHz using InfiniiMax III probe amplifier
Up to 13 GHz using InfiniiMax III+ probe amplifier
InfiniiMode probing uses the InfiniiMax III+ probe amplifier and differential probing uses the InfiniiMax III probe amplifier
Only compatible with InfiniiMax III/III+ probe amplifiers

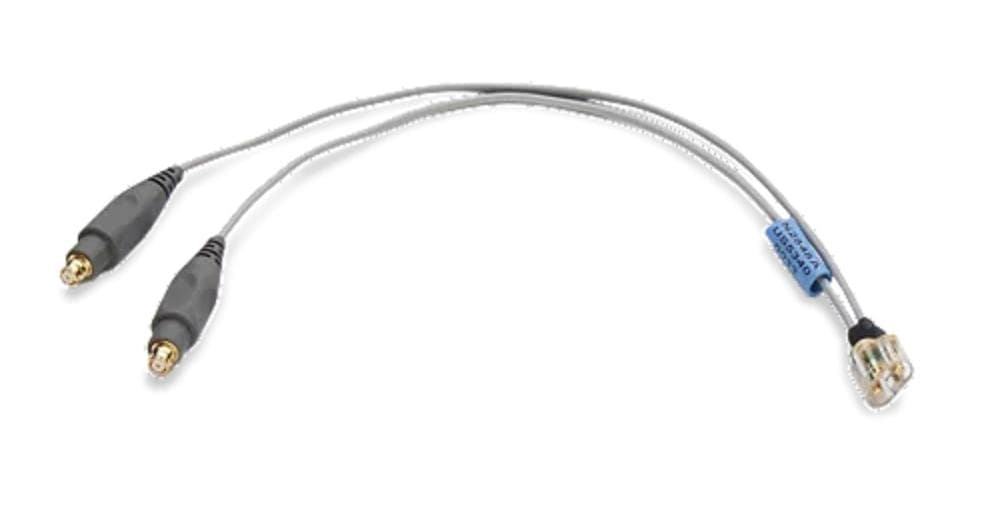

The N2848A/49A QuickTip takes probe usability to the next level by offering the industry's first magnetically connected probe and tips for fast and secure connections. The N2848A QuickTip probe quickly connects to the N2849A probe through magnetic adsorption, allowing both ends of the differential signal to be grounded. The device under test allows the installation of multiple N2849A probes, allowing for fast, reliable measurements at multiple probing points. QuickTip combines with the InfiniiMax III+ probe amplifier for InfiniiMode probing and the InfiniiMax III probe amplifier for differential probing.
面向最新接口标准的设计与调试，N2848A InfiniiMax III QuickTip probe 提供行业领先的精度与信号完整性。
