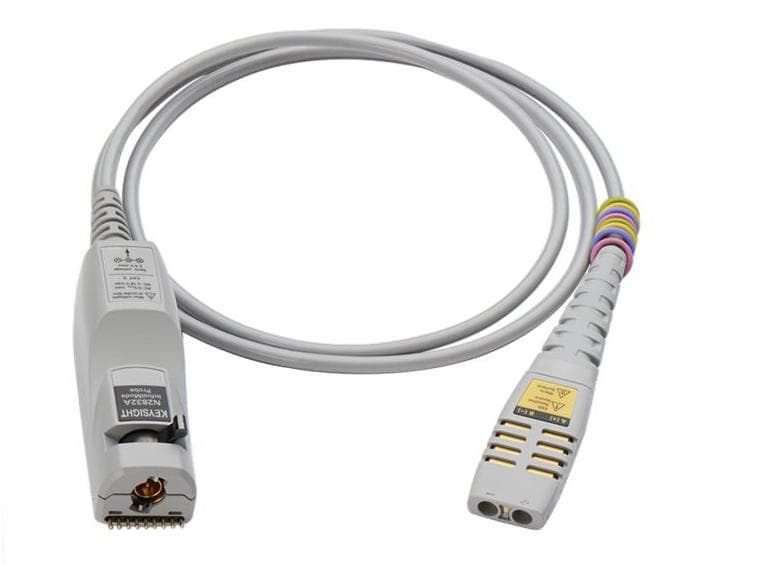

N2832A InfiniiMax III+ Series Probe Amplifier, 13 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N2832A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N2832A 的技术参考
产品概览
Features
bandwidth
13 GHz（-3 dB）
Tr = 33.4 ps（10-90%）
input range
DC attenuation ratio: 10:1 or 5:1
Input voltage range: 2.5 Vpp or ±1.25 V (5:1 attenuation ratio); 5 Vpp or ±2.5 V (10:1 attenuation ratio)
Input common-mode range: ±7 VDC (100 Hz), ±1.25 V (>100 Hz) (5:1 attenuation ratio); ±2.5 V (>100 Hz) (10:1 attenuation ratio)
Offset range: ±16 V (when probing single-ended signals)
Input impedance
DC input resistance: R diff = 100 kΩ ± 2%, R se = 50 kΩ ± 2%
Input resistance above 10 kHz: R diff = 1 kΩ, R se = 500 Ω
Input capacitance: C diff = 32 fF, C se = 44 fF (using ZIF probe)
connectivity
N2848A InfiniiMax III QuickTip probe and N5445A InfiniiMax III browser probe
N5439A InfiniiMax III ZIF probe
N5444A InfiniiMax III 2.92 mm/3.5 mm/SMA probe
N5441A InfiniiMax III solder-in probe
The N2832A Series InfiniiMax III+ probing system is a new generation of InfiniiMax probing systems that greatly expands probe measurement capabilities and ease of use to comprehensively measure differential signals. InfiniiMode technology built into the probing system allows users to switch between differential, single-ended and common-mode probing modes without changing probe connections.
The InfiniiMode technology of the N2832A series probes provides the following operating modes:
A – B (differential)
A – Ground (signal single-ended A)
B – Ground (signal single-ended B)
(A + B)/2 – Ground (common mode)
InfiniiMax III+ works with all InfiniiMax III probes and supports the full bandwidth of InfiniiMax III+.
面向最新接口标准的设计与调试，N2832A InfiniiMax III+ Series Probe Amplifier, 13 GHz 提供行业领先的精度与信号完整性。
