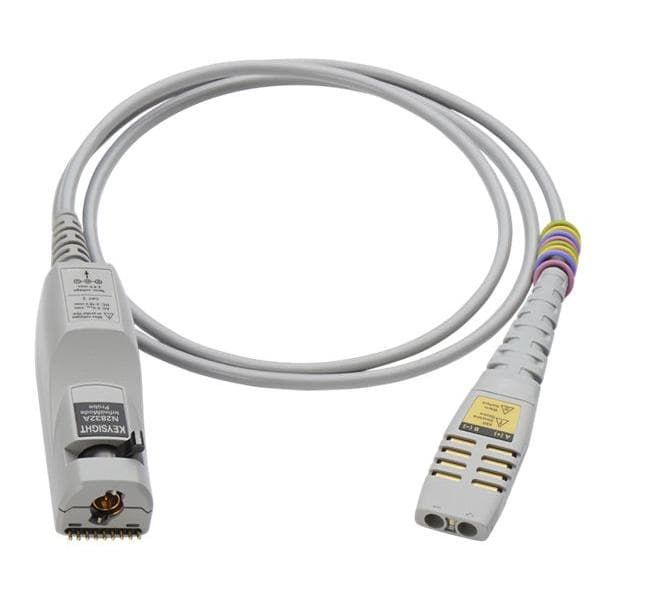

N2830A InfiniiMax III+ Series Probe Amplifier, 4 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N2830A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N2830A 的技术参考
产品概览
Features
bandwidth
4 GHz（-3 dB）
Tr = 108.5 ps（10-90%）
input range
DC attenuation ratio: 10:1 or 5:1
Input voltage range: 2.5 Vpp or ±1.25 V (5:1 attenuation ratio); 5 Vpp or ±2.5 V (10:1 attenuation ratio)
Input common-mode range: ±7 VDC (100 Hz), ±1.25 V (>100 Hz) (5:1 attenuation ratio); ±2.5 V (>100 Hz) (10:1 attenuation ratio)
Offset range: ±16 V (when probing single-ended signals)
Input impedance
DC input resistance: R diff = 100 kΩ ± 2%, R se = 50 kΩ ± 2%
Input resistance above 10 kHz: R diff = 1 kΩ, R se = 500 Ω
Input capacitance: C diff = 32 fF, C se = 44 fF (using ZIF probe)
connectivity
N2848A InfiniiMax III QuickTip probe and N5445A InfiniiMax III browser probe
N5439A InfiniiMax III ZIF probe
N5444A InfiniiMax III 2.92 mm/3.5 mm/SMA probe
N5441A InfiniiMax III solder-in probe
The N2830A Series InfiniiMax III+ probing system is a new generation of InfiniiMax probing systems that greatly expands probe measurement capabilities and ease-of-use to comprehensively measure differential signals. InfiniiMode technology built into the probing system allows users to switch between differential, single-ended and common-mode probing modes without changing probe connections.
The InfiniiMode technology of the N2830A Series probes provides the following operating modes:
A – B (differential)
A – Ground (signal single-ended A)
B – Ground (signal single-ended B)
(A + B)/2 – Ground (common mode)
InfiniiMax III+ works with all InfiniiMax III probes and supports the full bandwidth of InfiniiMax III+.
面向最新接口标准的设计与调试，N2830A InfiniiMax III+ Series Probe Amplifier, 4 GHz 提供行业领先的精度与信号完整性。
