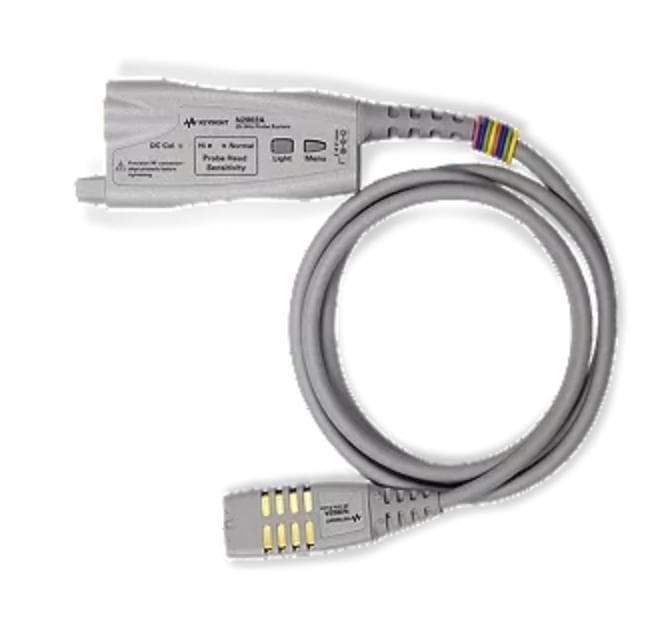

N2803A InfiniiMax III Series probe amplifier, 30 GHz

产品概览

Features

bandwidth:

30 GHz

Tr = 14.3 psec

scope:

DC attenuation ratio: 6:1 (3:1 when using 200 Ω ZIF probe)

Input voltage range: 1.6 Vpp (0.8 Vpp using 200 Ω ZIF probe)

Input common-mode range: ±12 V from dc to 250 Hz, ±2.5 V from >250 Hz (±6 V from dc to 250 Hz, ±1.25 V from >250 Hz using a 200 Ω ZIF probe)

Offset range: ±16 V (when probing single-ended signals)

Input impedance:

DC input resistance: R diff = 100 kΩ ±2%, R se = 50 kΩ ±2%

Input resistance at >10 kHz: R diff = 1 kΩ, R se = 500 Ω

Input capacitance: C diff = 32 fF, C se = 48 fF (when using ZIF probe head)

Recommended probes:

N5445A 30 GHz spot probe head

N5444A 30 GHz 2.92/3.4 mm SMA probe head

N5439A 28 GHz ZIF probe head

MX0109A 26 GHz solder-in probe head

Oscilloscope connectivity:

UXR 3.5mm oscilloscope

UXR 1 and 1.85mm oscilloscopes with N2852A adapter

90000X, Q, V, Z series oscilloscopes

The InfiniiMax III detection system delivers the highest bandwidth and extremely low loading, enabling new levels of signal fidelity and accuracy. Four different InfiniiMax III probe amplifiers covering frequency bands from 16 GHz to 30 GHz will provide a detection solution that perfectly matches your performance and budget requirements. The InfiniiMax III probe system uses a proprietary 200 GHz fT InP (indium phosphide) IC process with backside ground vias and novel thick film technology to meet your highest performance needs, unmatched by anything on the market.

Main features

30 GHz to probe (when using N5445A browser probe head)

Industry-lowest probe and oscilloscope system noise

Industry's highest fidelity and accuracy due to bandwidth and extremely low load

Probe amplifiers are loaded with measured S-parameters for more accurate response correction

Probe bandwidth upgradeable

Multiple probe heads offer different usage modes for maximum usability

面向最新接口标准的设计与调试，N2803A InfiniiMax III Series probe amplifier, 30 GHz 提供行业领先的精度与信号完整性。
