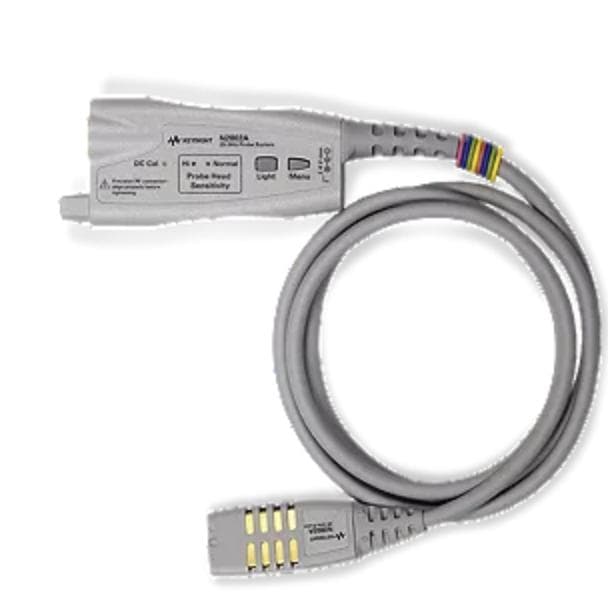

N2801A InfiniiMax III Series probe amplifier, 20 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N2801A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N2801A 的技术参考
产品概览
Features
bandwidth:
20 GHz
Tr = 27.1 ps
scope:
DC attenuation ratio: 6:1 (3:1 when using 200 Ω ZIF probe)
Input voltage range: 1.6 Vpp (0.8 Vpp using 200 Ω ZIF probe)
Input common-mode range: ±12 V (dc to 250 Hz), ±2.5 V (>250 Hz); with 200 Ω ZIF probe: ±6 V (dc to 250 Hz), ±1.25 V (>250 Hz)
Offset range: ±16 V (when probing single-ended signals)
Input impedance:
DC input resistance: R diff = 100 kΩ ± 2%, R se = 50 kΩ ± 2%
Input resistance above 10 kHz: R diff = 1 kΩ, R se = 500 Ω
Input capacitance: C diff = 32 fF, C se = 48 fF (using ZIF probe)
Recommended probes:
N5445A 30 GHz spot probe
N5444A 30 GHz 2.92/3.4 mm SMA probe
N5439A 28 GHz ZIF probe
MX0109A 26 GHz solder-in probe
Oscilloscope connectivity:
UXR 3.5 mm oscilloscope
UXR 1 and 1.85 mm oscilloscopes with N2852A adapter
90000X, Q, V, Z series oscilloscopes
The InfiniiMax III detection system provides greater bandwidth with minimal loading effects, enabling higher levels of signal fidelity and accuracy. InfiniiMax III probe amplifiers are available in four different models from 16 GHz to 30 GHz, so there is a probing solution that best meets your performance and budget requirements. The InfiniiMax III detection system uses a proprietary 200 GHz fT InP (indium phosphide) IC process with backside ground vias and novel thick film technology to meet higher performance needs and is well received by the market.
Main features
Full 20 GHz probe.
Ultra-low probe and oscilloscope system noise.
Greater bandwidth and ultra-low loading effects provide greater fidelity and accuracy.
The probe amplifier is loaded with measured s-parameters, allowing for more accurate response correction.
Probe bandwidth can be upgraded.
Contains a variety of probes suitable for different purposes and very easy to use.
面向最新接口标准的设计与调试，N2801A InfiniiMax III Series probe amplifier, 20 GHz 提供行业领先的精度与信号完整性。
