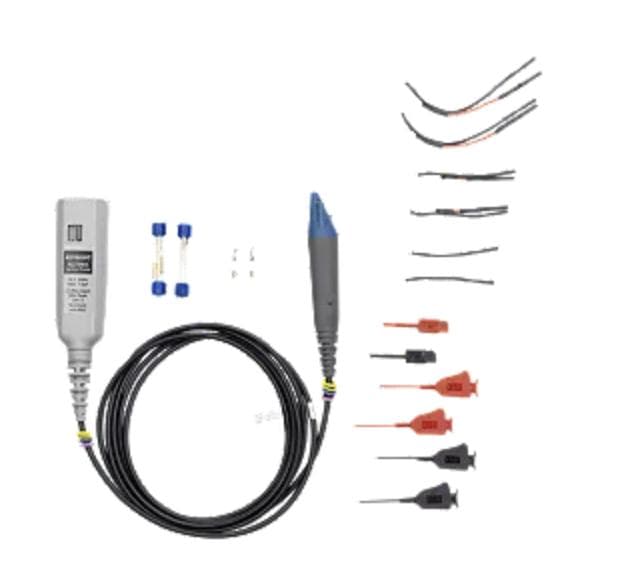

N2797A Extreme Temperature Active Probe, 1.5 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N2797A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N2797A 的技术参考
产品概览
Wide operating temperature range: –40 °C to +85°C for extreme temperature environmental chamber testing
1.5 GHz wideband (-3 dB)
High resistance (1 MΩ) and low capacitance (1 pF) inputs enable low loading
Wide input dynamic range (±8 V) and offset range (±12 V)
Built-in headlight provides excellent visibility during manual spot testing
Includes various probe accessories
Direct connection to AutoProbe interface (no power supply required)
Testing devices under extreme temperature conditions is now commonplace. The N2797A single-ended active probe is the industry's first low-cost, high input impedance active probe with ruggedized tips for environmental chamber testing of ICs and devices. It provides the capability for signal detection in harsh temperature environments from –40°C to +85°C. The probe offers 1.5 GHz bandwidth and a 2-meter cable.
The N2797A is equipped with a white LED headlight that illuminates the circuit under test, providing good visibility during manual spot testing. The probe is powered directly by the InfiniiVision and Infiniium AutoProbe interfaces, eliminating the need for an additional power supply. The probe also comes standard with several accessories for easy connection to the circuit under test. Replacement probe accessories are available by ordering the N2798A accessory kit.
面向最新接口标准的设计与调试，N2797A Extreme Temperature Active Probe, 1.5 GHz 提供行业领先的精度与信号完整性。
