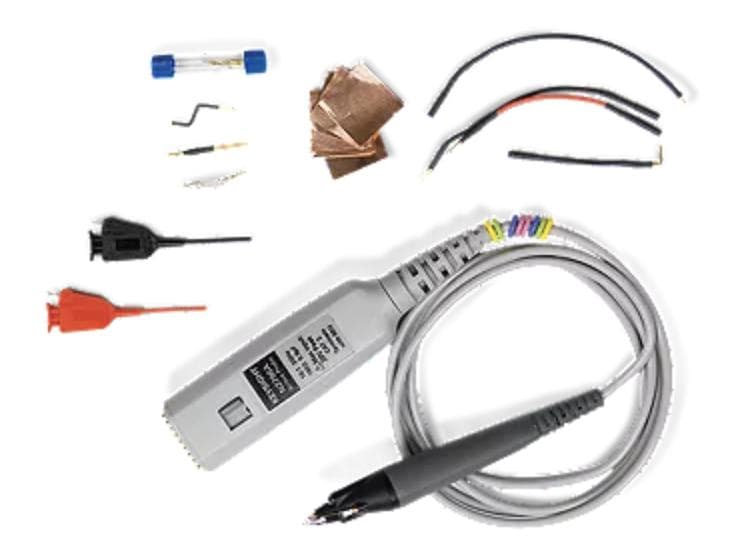

N2795A active probe, 1 GHz
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N2795A）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N2795A 的技术参考
产品概览
Features
Main features:
1GHz bandwidth (-3 dB)
High resistance (1 MΩ) and low capacitance (1 pF) inputs enable low loading
Wide input dynamic range (±8 V) and offset range (±8 V)
Built-in headlight provides excellent visibility during detection
Includes various probe accessories
Direct connection to AutoProbe interface (no power supply required)
Compatible oscilloscopes:
Keysight InfiniiVision 3000/3000T X-Series, 4000 X-Series, 6000 X-Series, 5000, 6000 (except 6000 100 MHz), 7000 and Infiniium 9000, S-Series and 90000A Series.
The N2795A is a new generation of low-cost single-ended active probe with AutoProbe interface. This probe integrates many of the features required for modern general-purpose high-speed probing and is ideally suited for digital system design, component design/characterization, and educational research applications. Its 1 MΩ input resistance and extremely low input capacitance (1 pF) provide ultra-low loading of the device under test. This advantage, combined with excellent signal fidelity, makes this probe particularly suitable for today's digital logic voltages. And, with its wide dynamic range (±8 V) and offset range (±8 V), the probe can be used in a variety of applications.
For high signal integrity probing, the N2795A 1 GHz active probe is the perfect complement to Keysight’s 500MHz – 600MHz bandwidth Infiniium and InfiniiVision Series oscilloscopes.
The N2795A is equipped with a white LED headlight to illuminate the circuit under test. The probe is powered directly by the InfiniiVision and Infiniium Autoprobe interfaces, eliminating the need for an additional power supply. The probe also comes standard with several accessories for easy connection to the circuit under test.
