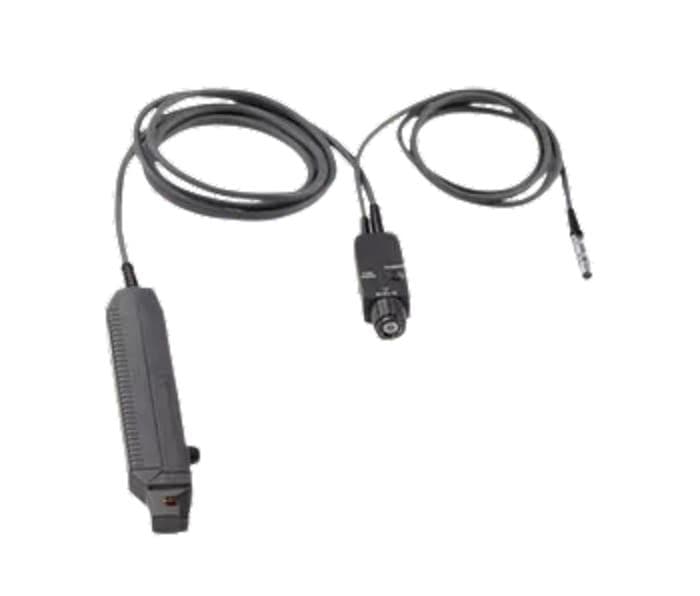

N2782B AC/DC Power Probe, 50 MHz, 30 Arms
面向高阶调试的专业级示波器
推荐方案套装
按测量任务配置的探头方案。
高压探头配置
安全高压测量流程。
- 高压探头（N2782B）
- 安全线缆
- 接地弹簧套件
- 收纳箱
* 工程师将进行兼容性核查。
详细规格
N2782B 的技术参考
产品概览
The N2782B current probe is an accurate and reliable AC and DC current measurement solution. Using hybrid technology including Hall effect sensors and AC current transformers, the probe accurately measures DC or AC current up to 30 arms long.
The current probe has a flat frequency response, low noise, and low insertion loss, making it ideal for steady-state or transient current measurements in motor drives, switching power supplies, inverters, controllers, disk drives, LCD displays, electronic ballasts, and current amplifiers driving inductive loads.
Use with any Keysight oscilloscope with a high-impedance BNC input: 1000, 2000 X-, 3000 X-, 4000
Achieve flat bandwidth - DC to 50 MHz, maximum current 30 arms
Achieve superior 1% accuracy and high signal-to-noise ratio
Prevent probe damage and overload protection function
Connect directly to the oscilloscope’s high-impedance BNC input
Use the "Demagnetize" button to remove any residual magnetism that has accumulated in the core
Connect up to three N278xBs to a single N2779A with external power supplies
面向最新接口标准的设计与调试，N2782B AC/DC Power Probe, 50 MHz, 30 Arms 提供行业领先的精度与信号完整性。
